Removal [08/2016 - 12/2017]: Procedure

PRECAUTION
NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Refer to PRECAUTION [09/2015 - 12/2017]
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [08/2016 - 12/2017]
REMOVE BRAKE MASTER CYLINDER SUB-ASSEMBLY WITH WAY
Refer to REMOVAL [09/2015 - ]
REMOVE FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 9
REMOVE COWL SIDE TRIM BOARD LH
Refer to PROCEDURE - Step 3
REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 7
REMOVE FRONT WIPER MOTOR AND LINK ASSEMBLY
Refer to REMOVAL [09/2015 - ]
REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 3

REMOVE BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY

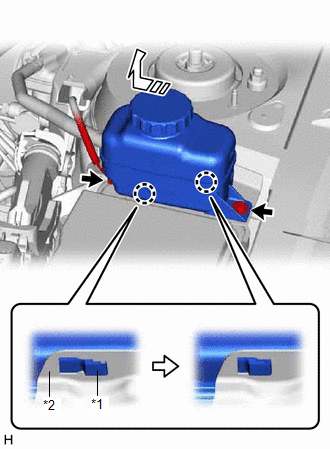

Disconnect the reservoir level switch connector and remove the bolt from the brake master cylinder reservoir assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Brake Master Cylinder Reservoir Assembly
*2	Reservoir Bracket

Move the brake master cylinder reservoir assembly as shown in the illustration to disengage the 2 claws, and remove it.

REMOVE RESERVOIR BRACKET

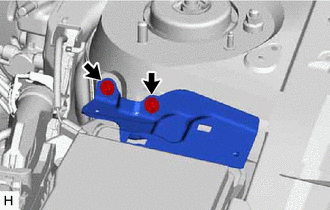

Remove the 2 bolts and reservoir bracket.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DISCONNECT UNION TO CHECK VALVE HOSE

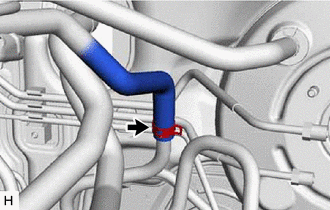

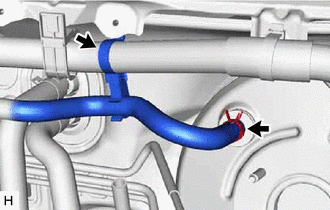

Slide the clip and disconnect the union to check valve hose from the brake booster assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Separate the union to check valve hose from the engine room main wire.

SEPARATE ENGINE ROOM MAIN WIRE (for TMC Made)

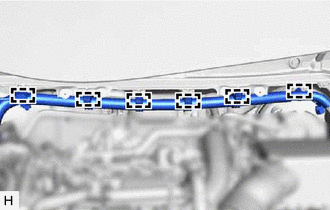

Disengage the 6 clamps to separate the engine room main wire.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the connector from the security horn assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

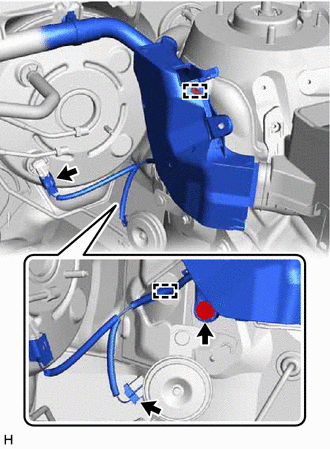

Disconnect the connector from the vacuum warning switch assembly.
Remove the bolt.
Disengage the clamp and pin to separate the wire harness protector.

Disengage the clamp.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

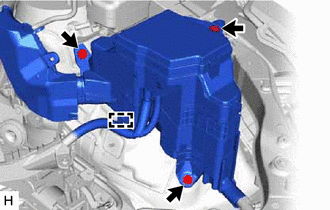

Remove the 3 bolts to separate the engine room relay block assembly.

SEPARATE ENGINE ROOM MAIN WIRE (for TMMC Made)

Disengage the 6 clamps to separate the engine room main wire.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/ Security Horn Assembly:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

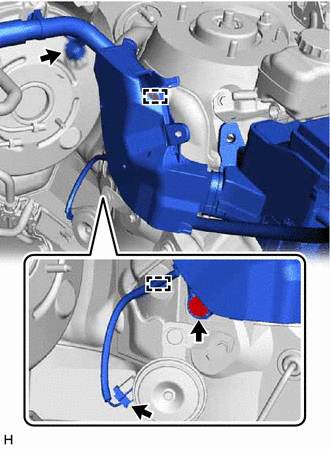

Disconnect the connector from the security horn assembly.

Disconnect the connector from the vacuum warning switch assembly.
Remove the bolt.
Disengage the clamp and pin to separate the wire harness protector.

Disengage the clamp.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 3 bolts to separate the engine room relay block assembly.

DISCONNECT FUEL VAPOR FEED HOSE ASSEMBLY

Slide the clip and disconnect the fuel vapor feed hose assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SEPARATE BRAKE LINE

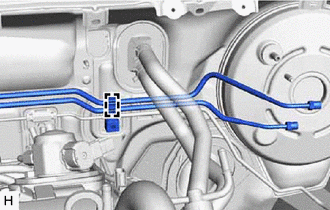

Disengage the brake tube clamp to separate the 2 brake lines.

NOTE:

Do not kink or damage the brake lines.
Do not damage the clamp.

REMOVE BRAKE PEDAL RETURN SPRING
See step 3

LOOSEN LOCK NUT

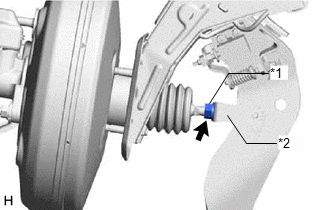

Loosen the lock nut of the brake master cylinder push rod clevis.

*1	Lock Nut
*2	Brake Master Cylinder Push Rod Clevis

REMOVE PUSH ROD PIN
See step 4

REMOVE BRAKE BOOSTER ASSEMBLY

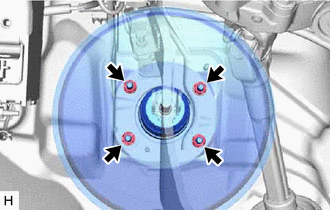

Remove the 4 nuts and push the brake booster assembly toward the engine compartment.

NOTE:

Do not apply excessive force to the brake lines.

Remove the brake master cylinder push rod clevis and lock nut from the brake booster assembly.
Remove the brake booster assembly from the vehicle body.
NOTE:
Do not apply excessive force to the brake lines.

REMOVE BRAKE BOOSTER GASKET
