Removal [09/2014 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [09/2014 - 11/2017] , or refer to PRECAUTION [11/2017 - 09/2020] , or refer to PRECAUTION [09/2020 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [09/2014 - 10/2015] , or refer to INITIALIZATION [10/2015 - 11/2017] , or refer to INITIALIZATION [11/2017 - 10/2018] , or refer to INITIALIZATION [10/2018 - 09/2020] , or refer to INITIALIZATION [09/2020 - 10/2022] , or refer to INITIALIZATION [10/2022 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]

  3. REMOVE FRONT DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 3 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 3 [11/2017 - ]

  4. REMOVE REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 1 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 1 [11/2017 - ]

  5. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 2 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 2 [11/2017 - ]

  6. DISCONNECT REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY

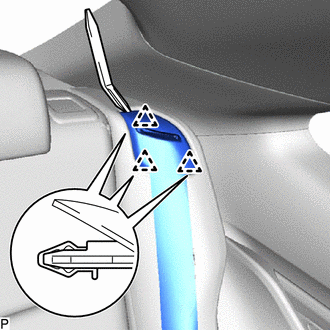

    1. Using a moulding remover, disengage the 3 clips to disconnect the belt guide unit of the rear seat 3 point type outer belt assembly.
      GTY509320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

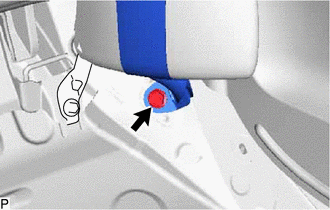

    2. Remove the bolt and disconnect the floor anchor of the rear seat 3 point type outer belt assembly.
      GTY509319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE REAR SIDE SEATBACK ASSEMBLY

    Refer to PROCEDURE - Step 5 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 5 [11/2017 - ]

  8. REMOVE REAR SEAT HEADREST ASSEMBLY (for LH Side)
    1. Remove the rear seat headrest assembly.
  9. REMOVE REAR SEATBACK ASSEMBLY LH (for LH Side)

    Refer to PROCEDURE - Step 9 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 9 [11/2017 - ]

  10. REMOVE REAR SEAT HEADREST ASSEMBLY (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  11. REMOVE REAR SEATBACK ASSEMBLY RH (for RH Side)

    Refer to PROCEDURE - Step 8 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 8 [11/2017 - ]

  12. REMOVE LAP BELT OUTER ANCHOR COVER

    See step  6

  13. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY

    See step  7

  14. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 15 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 15 [11/2017 - ]

  15. REMOVE INNER ROOF SIDE GARNISH ASSEMBLY

    Refer to PROCEDURE - Step 17 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 17 [11/2017 - ]

  16. REMOVE REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY
    1. for LH Side:

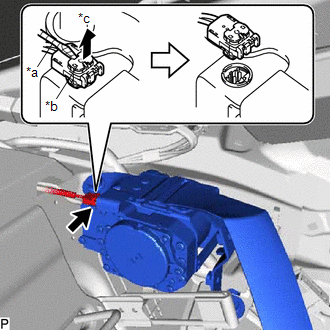

      1. Using a screwdriver, pull out the locking button as shown in the illustration to release the lock and disconnect the pretensioner connector.
        GTY520494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Protective Tape
        *b Locking Button
        *c Release

        HINT:

        Tape the screwdriver tip before use.

    2. for RH Side:

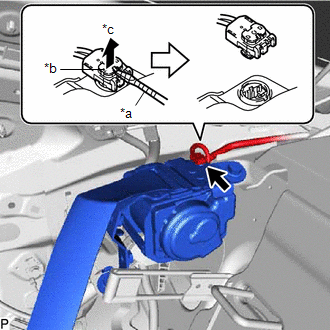

      1. Using a screwdriver, pull out the locking button as shown in the illustration to release the lock and disconnect the pretensioner connector.

        HINT:

        Tape the screwdriver tip before use.

        GTY498459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Protective Tape
        *b Locking Button
        *c Release

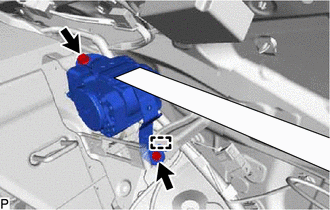

    3. Remove the 2 bolts.
      GTY520100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the guide to remove the rear seat 3 point type outer belt assembly.
  17. REMOVE REAR SEAT OUTER BELT ANCHOR BRACKET ASSEMBLY

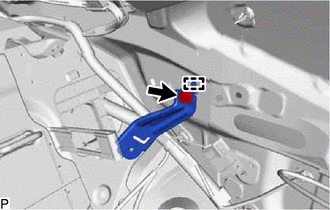

    1. Remove the bolt.
      GTY509314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide to remove the rear seat outer belt anchor bracket assembly.
