Components [09/2017 - 05/2019]

Fig 1: Front Bumper Replacement Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	REAR BUMPER COVER	*2	REAR BUMPER NO. 1 PLATE
*3	REAR FLOOR SIDE MEMBER COVER	-	-

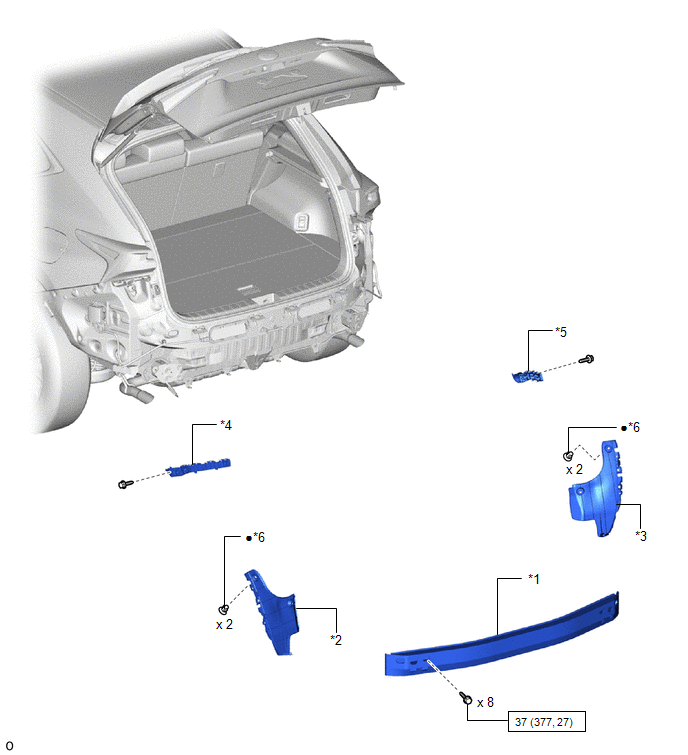

Fig 2: Front Bumper Replacement Components With Torue Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR BUMPER NO. 1 REINFORCEMENT	*2	REAR BUMPER SIDE SEAL LH
*3	REAR BUMPER SIDE SEAL RH	*4	REAR BUMPER SIDE SUPPORT LH
*5	REAR BUMPER SIDE SUPPORT RH	*6	GROMMET
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part

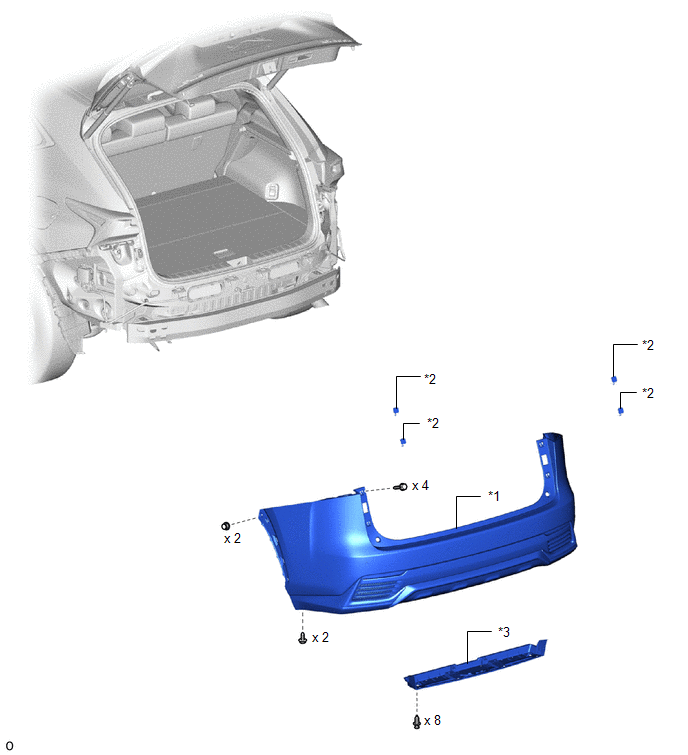

Fig 3: Rear Bumper Replacement Components (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

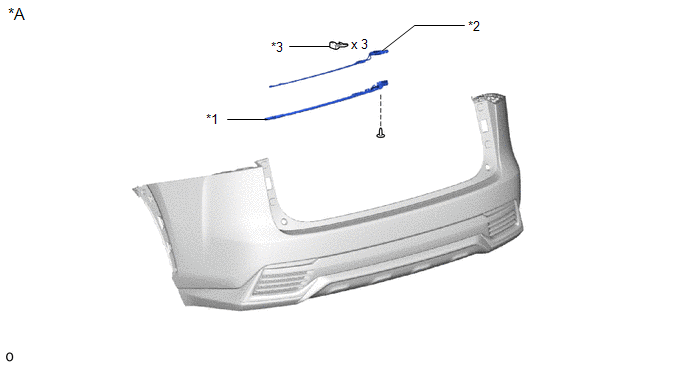

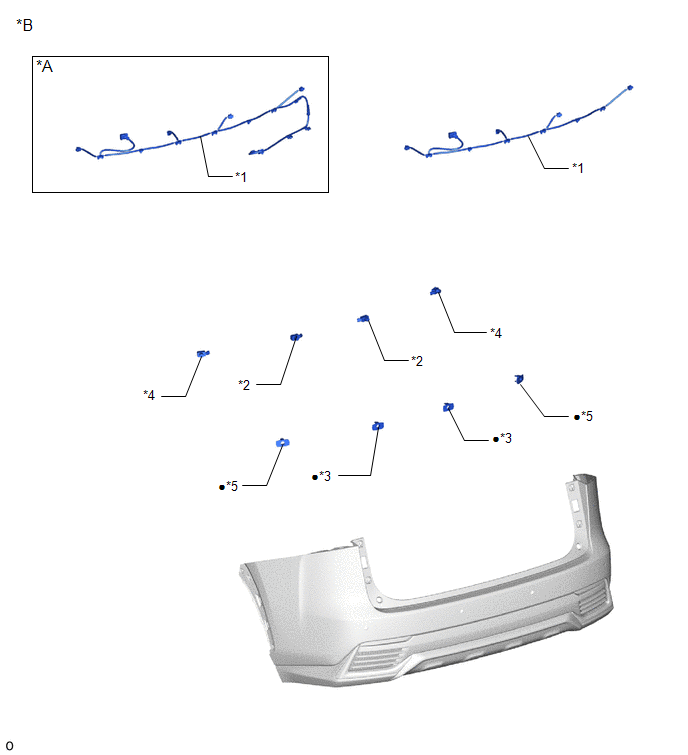

Fig 4: Rear Bumper Replacement Components (4 Of 5)

*A	w/ Hands Free Power Back Door	*B	w/ Intuitive Parking Assist System
*1	NO. 2 LUGGAGE ROOM WIRE	*2	REAR CENTER ULTRASONIC SENSOR
*3	REAR CENTER ULTRASONIC SENSOR RETAINER	*4	REAR CORNER ULTRASONIC SENSOR
*5	REAR CORNER ULTRASONIC SENSOR RETAINER	-	-
•	Non-reusable part	-	-

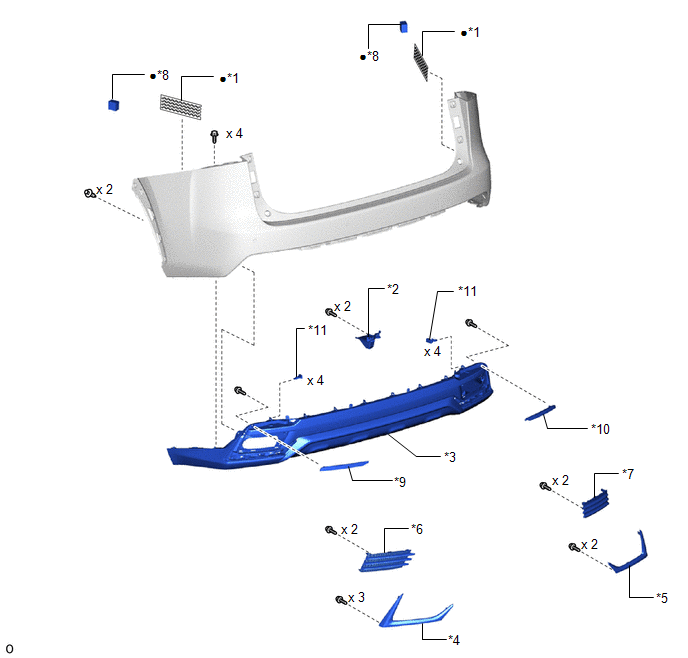

Fig 5: Rear Bumper Replacement Components (5 Of 5)

*1	NO. 1 MOULDING TAPE	*2	REAR BUMPER CORNER EXTENSION RH
*3	REAR BUMPER LOWER COVER	*4	REAR BUMPER LOWER RETAINER LH
*5	REAR BUMPER LOWER RETAINER RH	*6	REAR BUMPER LOWER SIDE RETAINER LH
*7	REAR BUMPER LOWER SIDE RETAINER RH	*8	REAR BUMPER PAD
*9	REFLEX REFLECTOR ASSEMBLY LH	*10	REFLEX REFLECTOR ASSEMBLY RH
*11	OUT SIDE MOULDING RETAINER	-	-
•	Non-reusable part	-	-
