Components [10/2014 - 07/2020]

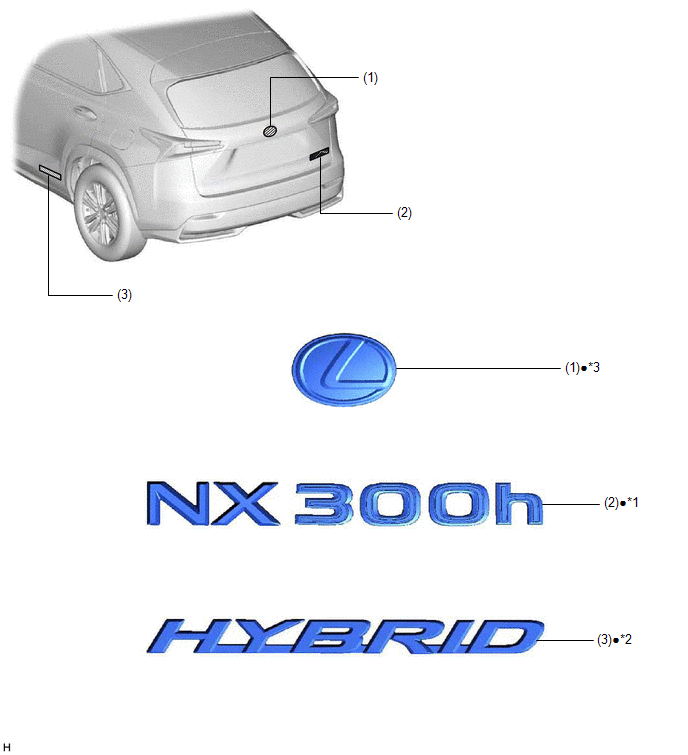

Fig 1: Name Plate Replacement Components
GTY512257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 BACK DOOR NO. 2 NAME PLATE *2 REAR BODY NO. 4 NAME PLATE
*3 SYMBOL EMBLEM - -
• Non-reusable part - -
