System Diagram [09/2017 - 07/2020]

CAN SIGNAL
Refer to SYSTEM DIAGRAM [09/2017 - 05/2019] , or refer to SYSTEM DIAGRAM [05/2019 - 07/2020]
DIRECT LINE SIGNAL

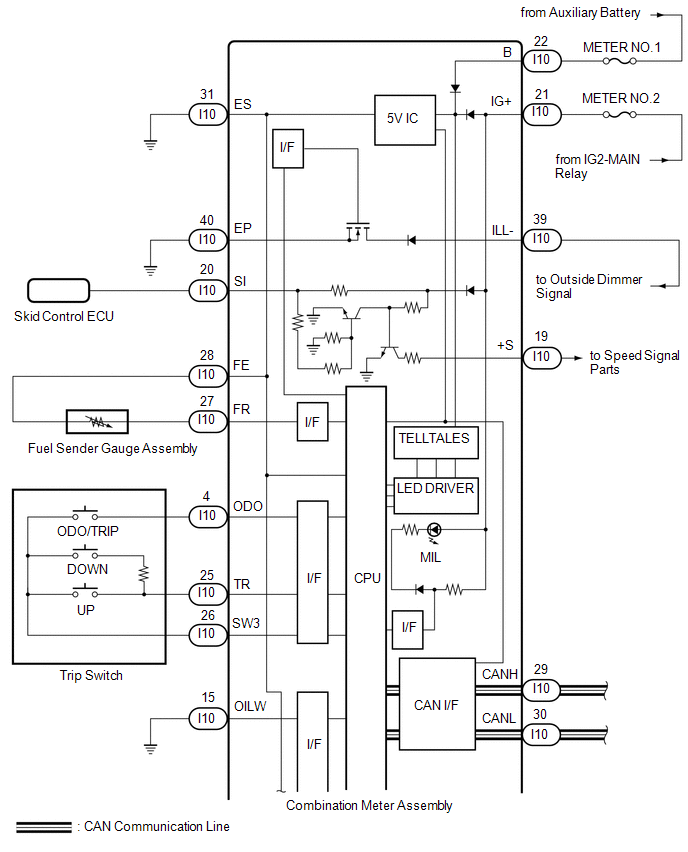

Fig 1: Direct Line Signal Wiring Diagram (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

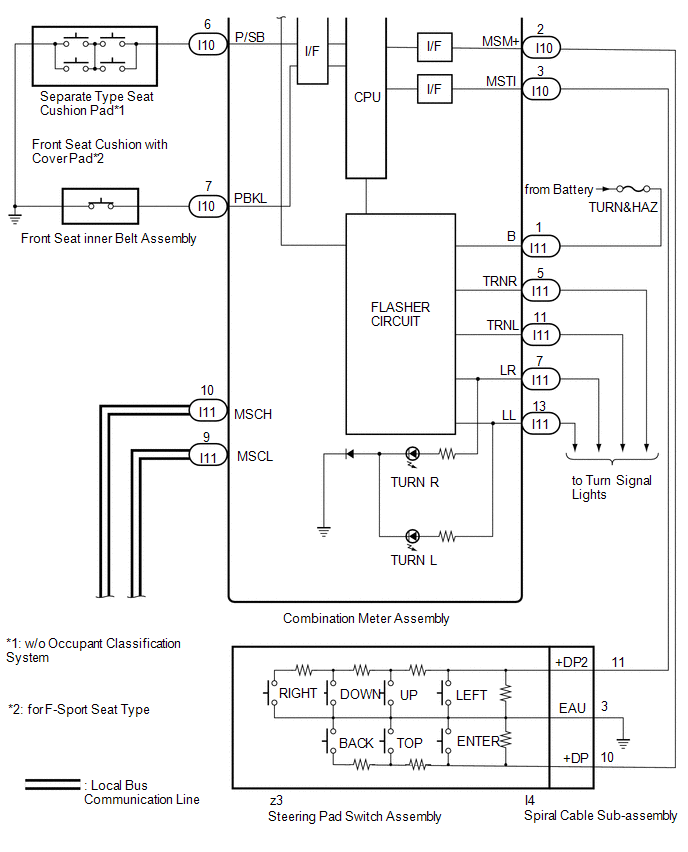

Fig 2: Direct Line Signal Wiring Diagram (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

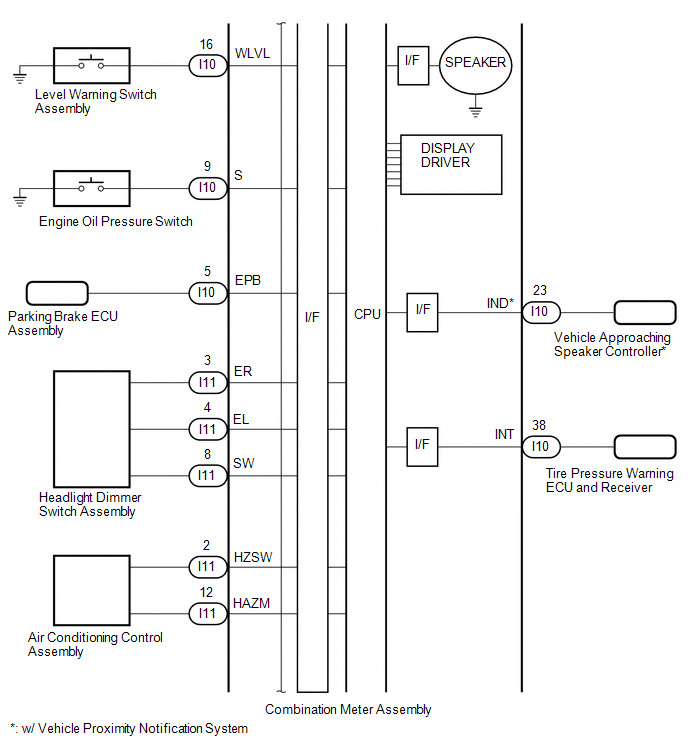

Fig 3: Direct Line Signal Wiring Diagram (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Direct Line Signal Wiring Diagram (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
