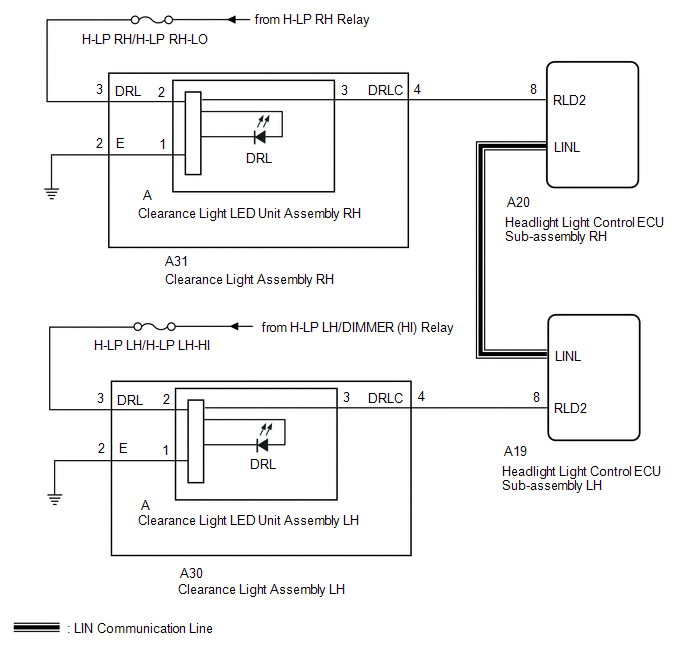

Daytime Running Light Relay Circuit [10/2014 - 09/2017]: Wiring Diagram

GTY517509

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
