Installation [10/2017 - 10/2020]: Procedure

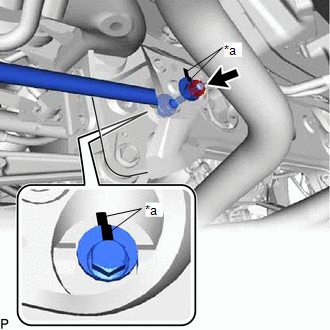

1. Insert the rear suspension toe adjust cam sub-assembly from the front of the vehicle. Then temporarily tighten the rear No. 2 suspension toe adjust plate and toe control link sub-assembly LH with the nut.
   NOTE:

   Align the matchmarks on the rear suspension toe adjust cam sub-assembly, rear No. 2 suspension toe adjust plate and rear suspension member sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

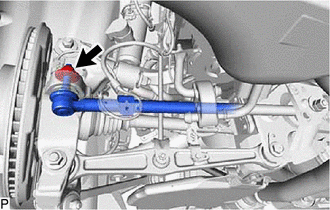

2. Temporarily tighten the toe control link sub-assembly LH with a new nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

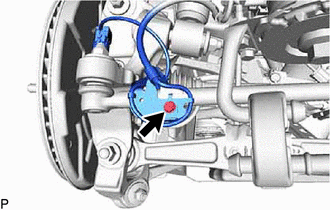

1. Install the skid control sensor wire LH to the toe control link sub-assembly LH with the bolt.

   Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

See step  5

1. Fully tighten the nut (rear suspension member sub-assembly side).

   Torque: 78 N.m (795 kgf/cm, 58 ft.lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

   NOTE:

   Align the matchmarks on the rear suspension toe adjust cam sub-assembly, rear No. 2 suspension toe adjust plate and rear suspension member sub-assembly.

2. Fully tighten the nut (rear axle carrier sub-assembly LH side).

   Torque: 118 N.m (1203 kgf/cm, 87 ft.lbf)

Refer to PROCEDURE - Step 7

Refer to INSTALLATION [10/2017 - 10/2023]

Refer to ADJUSTMENT [10/2017 - 10/2020]

Refer to ADJUSTMENT [10/2017 - 10/2020]

Refer to INITIALIZATION [10/2017 - 09/2018] , or refer to INITIALIZATION [09/2018 - 10/2020]

Refer to ADJUSTMENT [10/2017 - 10/2020]
