Removal [10/2022 - 10/2023]: Procedure
- REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
Refer to PROCEDURE - Step 25
- REMOVE TOOL BOX
Refer to PROCEDURE - Step 3
- PRECAUTION WARNING:
Be sure to read precaution thoroughly before servicing.
w/ Advanced Park:
Refer to PRECAUTION [11/2021 - 10/2023]
w/o Advanced Park:
Refer to PRECAUTION [11/2021 - 10/2023]
NOTE:After turning the power switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
- DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL NOTE:
It is necessary to remove the shift control ECU while no power is being supplied from the sub-battery. Therefore, perform the following procedures.
- Turn the power switch off.
- Check that the ODO meter display has turned off.
HINT:
The ODO meter continues to display for 30 seconds after turning off. Therefore, allow sufficient time for the shift control ECU to enter sleep mode and for the sub-battery power supply to end. In addition to monitoring the sub-battery voltage directly, the only other method for checking on the vehicle is to use the ODO meter display.
- Disconnect the cable from the negative (-) auxiliary battery terminal.
- REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
Refer to PROCEDURE - Step 32
- REMOVE NO. 2 AIR DUCT SUB-ASSEMBLY
Refer to PROCEDURE - Step 57

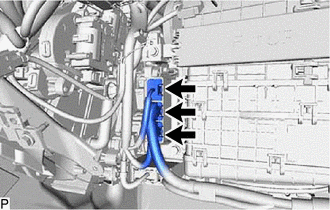

- REMOVE SHIFT CONTROL ECU

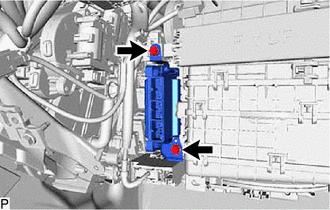

- REMOVE NO. 1 SHIFT CONTROL ECU BRACKET
- REMOVE NO. 2 SHIFT CONTROL ECU BRACKET
