Installation [10/2017 - 10/2020]: Procedure
- INSTALL OIL PUMP MOTOR CONTROLLER NOTE:
If the oil pump motor controller has been struck or dropped, replace it.
- Install the oil pump motor controller bracket to the oil pump motor controller with the 2 bolts.
Torque: 6.0 N.m (61 kgf/cm, 53 in.lbf)
- Install the oil pump motor controller bracket to the oil pump motor controller with the 2 bolts.
Torque: 6.0 N.m (61 kgf/cm, 53 in.lbf)
- Install the oil pump motor controller with bracket with the 2 nuts.
Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)
- Install the oil pump motor controller bracket to the oil pump motor controller with the 2 bolts.
- CONNECT CONNECTOR

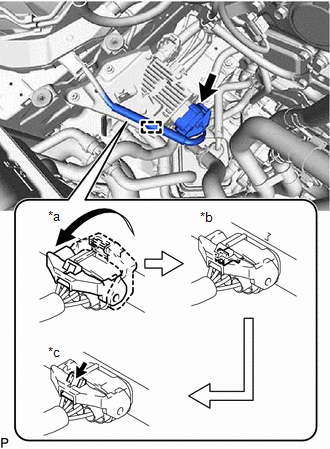

- Connect the connector and securely lock the lock lever as shown in the illustration.
*a Raise the lock lever *b Securely lock the claw *c Push in the lock NOTE:- Be sure to securely lock the claw of the connector.
- Push the connector all the way in and lock the lock lever.
HINT:
When the connector is pushed all the way in, the lock lever will move slightly towards the lock position.
- Push the lock into the lock lever to securely lock the lock lever of the connector.NOTE:
Securely lock the lock lever of the connector.
- Connect the connector to the oil pump motor controller.

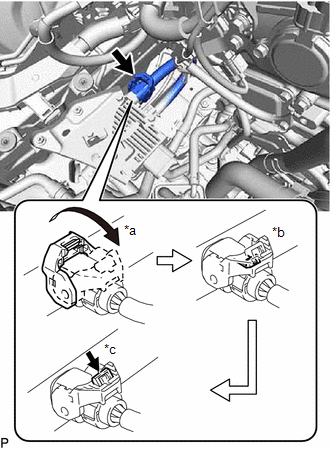

- Connect the connector and securely lock the lock lever as shown in the illustration.
*a Raise the lock lever *b Securely lock the claw *c Push in the lock NOTE:- Be sure to securely lock the claw of the connector.
- Push the connector all the way in and lock the lock lever.
HINT:
When the connector is pushed all the way in, the lock lever will move slightly towards the lock position.
- Push the lock into the lock lever to securely lock the lock lever of the connector.NOTE:
Securely lock the lock lever of the connector.
- Attach the wire harness clamp to the oil pump motor controller bracket.
- Attach the 2 clamps and connect the ground wire.
- Install the 2 bolts.
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
- Connect the connector and securely lock the lock lever as shown in the illustration.
- INSTALL AIR CLEANER ASSEMBLY
- Install the air cleaner assembly to the 3 air cleaner supports.

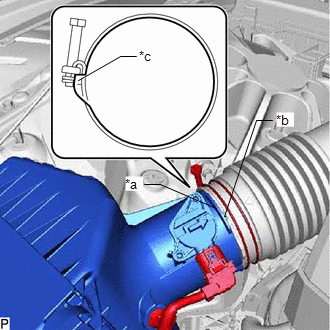

*1 Air Cleaner Support - Align the protrusion of the air cleaner assembly with the cutout of the air cleaner hose assembly, and connect the air cleaner hose assembly to the air cleaner assembly.
*a Protrusion *b Cutout *c Stopper - Tighten while pressing the hose clamp against the stopper on the air cleaner hose assembly.
Torque: 4.0 N.m (41 kgf/cm, 35 in.lbf)
- Connect the intake mass air flow meter connector.
- Attach the wire harness clamp.
- Install the air cleaner assembly to the 3 air cleaner supports.
- INSTALL NO. 1 AIR CLEANER INLET
Refer to PROCEDURE - Step 5
- INSTALL RADIATOR SUPPORT TO CROSS MEMBER BRACE SUB-ASSEMBLY RH
Refer to PROCEDURE - Step 41
- INSTALL LOWER RADIATOR AIR DEFLECTOR
Refer to PROCEDURE - Step 43
- INSTALL RADIATOR COVER PLATE
Refer to PROCEDURE - Step 45
- CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to INSTALLATION [10/2017 - 10/2020]
