Installation [10/2017 - 10/2020]: Procedure

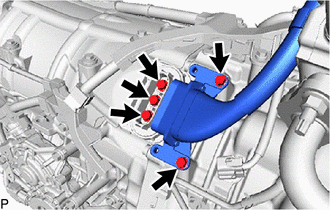

1. Using an insulated tool, temporarily install the motor cable to the hybrid vehicle transmission assembly with the 5 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Keep foreign matter, water, etc., away from the motor cable terminals and their installation area.

   HINT:

   When installing the motor cable, hold the motor cable by hand so that the motor cable base is not bent.

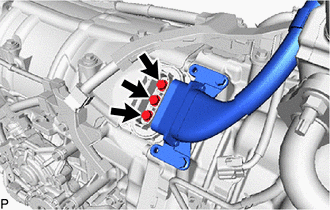

2. Using an insulated tool, tighten the motor cable terminals with the 3 bolts.

   Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

   NOTE:

   Keep foreign matter, water, etc., away from the motor cable terminals and their installation area.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   When installing the motor cable, hold the motor cable by hand so that the motor cable base is not bent.

3. Using an insulated tool, tighten the 2 bolts.

   Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Keep foreign matter, water, etc., away from the motor cable terminals and their installation area.

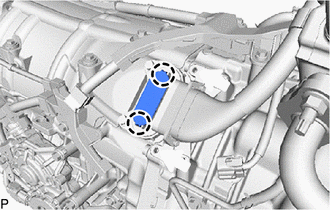

4. Attach the 2 claws to install a new terminal cap to the hybrid vehicle transmission assembly.
   NOTE:

   • Check that the terminal cap is securely installed.
   • Do not pinch the O-ring.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

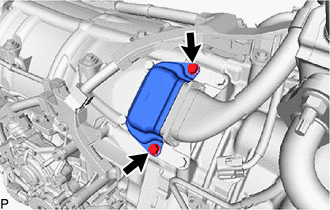

5. Using an insulated tool, install the connector cover to the hybrid vehicle transmission assembly with the 2 bolts.

   Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

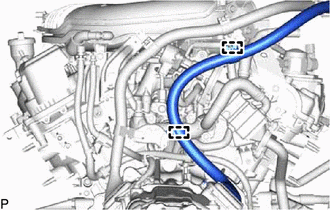

6. Connect the 2 clamps of the motor cable to the engine assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to INSTALLATION [10/2017 - 09/2018] , or refer to INSTALLATION [09/2018 - 10/2020]

Refer to INITIALIZATION [10/2017 - 09/2018] , or refer to INITIALIZATION [09/2018 - 10/2020]

Refer to UTILITY [10/2017 - ]

Refer to PROCEDURE - Step 10
