Adjustment [10/2017 - 10/2020]: Procedure

Refer to INSPECTION [10/2017 - 10/2020]

HINT:

Check the vehicle condition when operating to the standard vehicle height setting.

• Perform the work with the vehicle stopped on a flat surface.
• Make sure the hood is closed.
• Make sure the luggage compartment door closed
• Set the shift lever to P.
• Make sure the courtesy lights are not on.
• Do not depress the brake pedal.
• Perform height adjust from outside of the vehicle to avoid vehicle height changes due when getting out of the vehicle.

1. Record the vehicle setting conditions on the multi-information display.
2. Get out of the vehicle and bounce the vehicle up and down at the corners to stabilize the suspension.
3. From the outside of the vehicle, select access mode and turn it off via the vehicle setting conditions on the multi-information display.
4. Operate the height control switch from outside the vehicle and adjust the vehicle height to HIGH
5. After vehicle height control is completed, operate the height control switch from outside the vehicle and return the vehicle height to NORMAL.
6. After vehicle height control is completed, select vehicle height control mode and turn it off via the vehicle setting conditions on the multi-information display.

1. Bounce the vehicle up and down at the corners to stabilize the suspension.
2. Measure the vehicle height.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

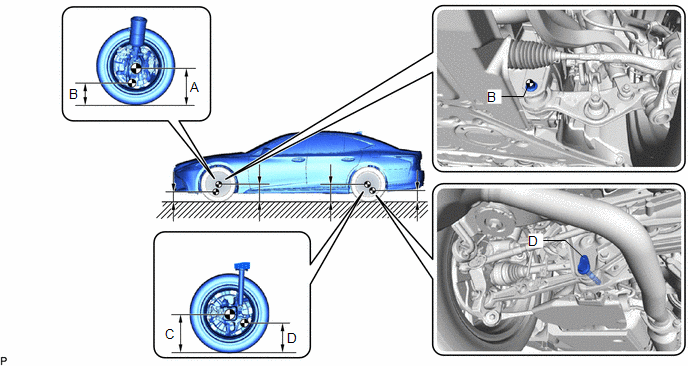

   Measurement Points:

   1. A: Ground clearance of front wheel center
   1. B: Ground clearance of front No. 2 suspension lower arm bolt center
   1. C: Ground clearance of rear wheel center
   1. D: Ground clearance of rear suspension arm attachment recess

   Vehicle Height (Unloaded Vehicle)

   Item	Front A - B	Rear C - D
   w/ Air suspension	132 mm (5.20 in.)	88 mm (3.46 in.)
   w/o Air suspension	116 mm (4.57 in.)	71 mm (2.80 in.)

Camber (Unloaded Vehicle)

Caster (Unloaded Vehicle)

Steering Axis Inclination (Unloaded Vehicle)

1. Bounce the vehicle up and down at the corners to stabilize the suspension.
2. Release the parking brake and move the shift lever to N.
3. Push the vehicle straight ahead approximately 5 m (16.4 ft.). (Step C)
4. Put tread center marks on the rearmost points of the front wheels and measure the distance between the marks (dimension B).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Tread Center Mark
   *b	Dimension B
   	Front of the Vehicle

5. Slowly push the vehicle straight ahead to cause the front wheels to rotate 180°. Use the front tire valve as a reference point.

   HINT:

   Do not allow the wheels to rotate more than 180°. If the wheels rotate more than 180°, perform the procedure from step C again.

6. Measure the distance between the tread center marks on the front of the wheels (dimension A).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Dimension A
   	Front of the Vehicle

   Toe-in (Unloaded Vehicle)

   Specified Condition
   C + D: 0°+/- 0°09' (0°+/-0.15°)
   B - A: 0 +/- 2 mm (0 +/- 0.079 in.)

   HINT:

   Measure "B - A" only when "C + D" cannot be measured.

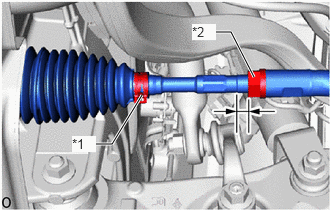

1. Make sure that the thread length of the right and left steering rack ends are approximately the same.

   Standard Difference

   1.5 mm (0.059 in.) or less

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Steering Rack Boot Clip
   *2	Lock Nut

2. Remove the steering rack boot clips.
3. Loosen the tie rod assembly lock nuts.
4. Turn the right and left steering rack ends by an equal amount to adjust the toe-in.
5. Make sure that the thread length of the right and left steering rack ends are the same.
6. Using SST, tighten the tie rod assembly lock nuts.
   • SST: 09612-24014
     1. 09617-24011

   Specified tightening torque

   Torque: 88 N.m (897 kgf/cm, 65 ft.lbf)

   HINT:

   • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

     Refer to PRECAUTION [10/2017 - 09/2019] , or refer to PRECAUTION [09/2019 - 10/2020]

   • When using SST (fulcrum length of 51 mm (2.008 in.)) + torque wrench (fulcrum length of 600 mm (23.622 in.)): 81.1 N.m (827 kgf/cm, 60 ft.lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Torque Wrench Fulcrum Length

7. Place the steering rack boots on the seats and install the steering rack boot clips.

   HINT:

   • Make sure that the steering rack boots are not twisted.
   • Make sure that the steering rack boot clips are facing towards the front of the vehicle.

1. Put tread center marks on the rearmost points of a turning radius gauge.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Inside
   *b	Outside
   	Front of the Vehicle

2. Turn the steering wheel fully to the left and right and measure the turning angle.

   Wheel Turning Angle (Unloaded Vehicle)

   Item	Inside Wheel	Outside Wheel
   w/ Air suspension	40°27' (38°27' to 42°27') (40.45° (38.45° to 42.45°))	34°31' (34.19°)
   w/o Air suspension	40°36' (38°36' to 42°36') (40.60° (38.60° to 42.60°))	34°49' (34.82°)

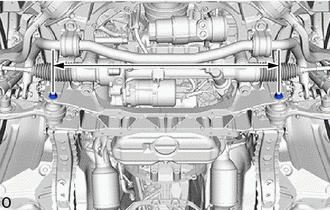

1. Inspect the front frame crossmember sub-assembly.

   Standard

   775.6 mm (30.54 in.)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

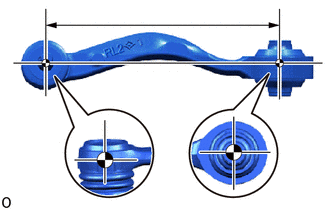

2. Inspect the front lower suspension arm assembly.

   Standard

   493.6 mm (19.43 in.)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

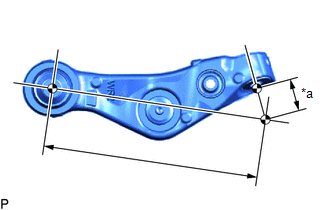

3. Inspect the lower No. 2 suspension arm assembly.

   Standard

   309.9 mm (12.20 in.)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	26 mm (1.02 in.)

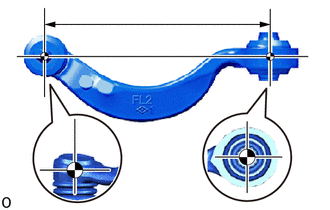

4. Inspect the front upper No. 1 suspension arm assembly.

   Standard

   232.6 mm (9.16 in.)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

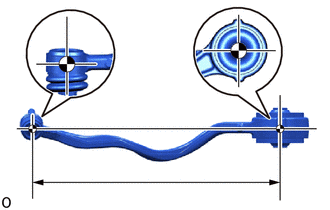

5. Inspect the front upper No. 2 suspension arm assembly.

   Standard

   218.5 mm (8.60 in.)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check the vehicle height control operation.

   Refer to OPERATION CHECK [10/2017 - ]

2. After the inspection is completed, return the settings to the recorded values.
