Installation [10/2023 - ]: Procedure
- INSTALL REAR DISC BRAKE ANTI-SQUEAL SHIM NOTE:
- When replacing the rear disc brake pads with new ones, make sure to replace the rear disc brake anti-squeal shim kit at the same time.
- Do not apply lubricants to the lining surface of the brake pad.
- Install the anti-squeal shims in the correct position and direction.
- Apply a light coat of grease (Part No. 90999-94254) to the rear disc brake pads as shown in the illustration.
Grease (Part No. 90999-94254) NOTE:When applying grease, use the grease enclosed with a rear disc brake pad kit or supplied grease (Part No. 90999-94254) or equivalent.

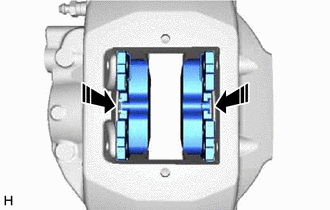

- Apply brake shim grease (Part No. 08887-80409) to the rear disc brake pads and No. 1 anti-squeal shims at the positions shown in the illustration.
*1 Rear Disc Brake Pad *2 No. 1 Anti-Squeal Shim *3 No. 2 Anti-Squeal Shim *4 Inner Anti-Rattle Spring Brake Shim Grease (Part No. 08887-80409) NOTE:- Use the grease supplied with the anti-squeal shim kit or brake shim grease (Part No. 08887-80409) or equivalent.
- Do not apply grease between the No. 1 and No. 2 anti-squeal shims.
- Install the inner anti-rattle springs to each of the rear disc brake pads.
- Install the No. 1 and No. 2 anti-squeal shims to each of the rear disc brake pads.
- INSTALL REAR DISC BRAKE PAD WARNING:
Be careful not to get pinched by the disc brake cylinder assembly or other parts when installing the rear disc brake pads.

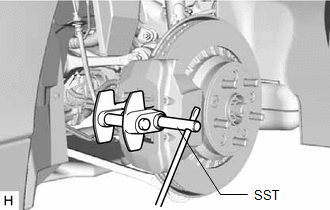

- Using SST, push back the rear disc brake piston.
- SST: 09719-77010
NOTE:- Make sure the brake fluid does not overflow from the reservoir.
- Do not forcibly push in the rear disc brake piston.
- for RH side:
- Install the pad wear indicator wire assembly RH to the rear disc brake pad (inner) with a new pad wear indicator retainer.NOTE:
- The rear disc brake pad with the pad wear indicator wire assembly RH must be installed to the inside position.
- When replacing the rear disc brake pads with new ones, make sure to replace the pad wear indicator wire assembly RH and pad wear indicator retainer at the same time.
- Install the pad wear indicator wire assembly RH to the rear disc brake pad (inner) with a new pad wear indicator retainer.
- Install the 2 rear disc brake pads to the rear disc brake cylinder assembly LH.
- Install the No. 1 anti-rattle spring to the rear disc brake cylinder LH.

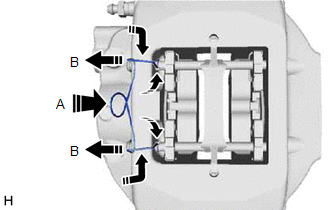

- While pressing the area (A), install the 2 hole pins (B).

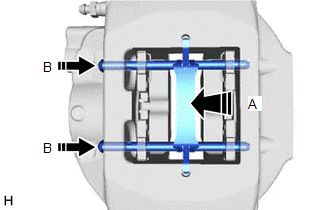

- While pressing the area (A), slightly pull out the hole pin (B) from the rear disc brake cylinder assembly LH, and install the pin hold clip.
for RH side:

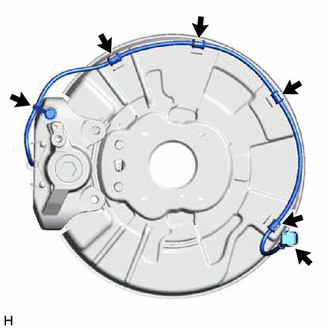

- Connect the pad wear indicator wire assembly RH to the rear wheel bearing dust deflector with the 4 clamps.
- Connect the bleeder plug cap to the rear disc brake bleeder plug.
- Connect the pad wear indicator wire connector to the rear speed sensor RH.
- Using SST, push back the rear disc brake piston.
- CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to PROCEDURE - Step 7
- INSPECT BRAKE FLUID LEVEL IN RESERVOIR
Refer to ON-VEHICLE INSPECTION [10/2023 - ]
- INSTALL REAR WHEEL
Refer to INSTALLATION [10/2023 - ]
