Installation [11/2021 - ]: Procedure

1. When replacing with a new part:

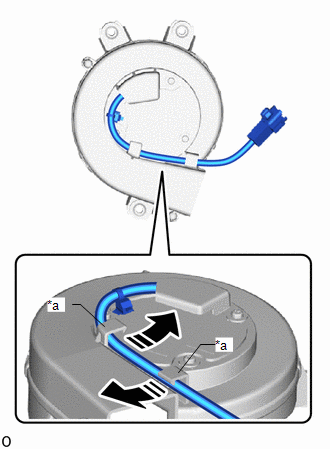

   1. Pull the wire harness in the direction shown in the illustration and remove the wire harness from the claw.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Claw
      	Remove in this Direction

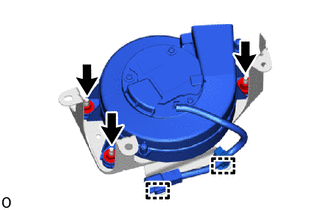

2. Install the DC/DC converter cooling blower assembly to the converter cooling blower bracket with the 3 nuts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

3. Engage the 2 clamps.

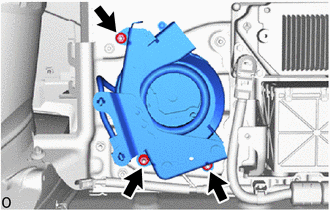

1. Install the DC/DC converter cooling blower assembly w/converter cooling blower bracket with the 3 nuts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

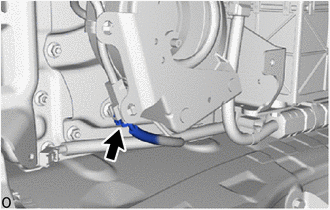

2. Connect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

See step  1

HINT:

Use the same procedure described for the front luggage compartment trim cover (w/o Advanced Drive).

Refer to PROCEDURE - Step 7 [11/2021 - 10/2023] , or refer to PROCEDURE - Step 7 [10/2023 - ]

Refer to PROCEDURE - Step 11 [11/2021 - 10/2023] , or refer to PROCEDURE - Step 11 [10/2023 - ]

Refer to PROCEDURE - Step 12 [11/2021 - 10/2023] , or refer to PROCEDURE - Step 12 [10/2023 - ]

Refer to PROCEDURE - Step 14 [11/2021 - 10/2023] , or refer to PROCEDURE - Step 14 [10/2023 - ]

Refer to INSTALLATION [10/2020 - ]

Refer to INSTALLATION [10/2020 - 10/2023] , or refer to INSTALLATION [10/2023 - ]

Refer to PROCEDURE - Step 13 [11/2021 - 10/2023] , or refer to PROCEDURE - Step 13 [10/2023 - ]

Refer to WORK PROCEDURE [11/2021 - 10/2022] , or refer to WORK PROCEDURE [10/2022 - ]

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [11/2021 - 10/2023] , or refer to AUTOMATIC LEARNING CHART [10/2023 - ]
