Installation [10/2017 - ]: Procedure

  1. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY
    1. Attach the guide.

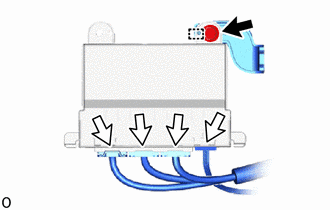

      GTY834782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw
      Connector
    2. Install the heater bracket to air conditioning amplifier assembly with the screw.
    3. Connect the 4 connectors.
    4. Attach the guide.

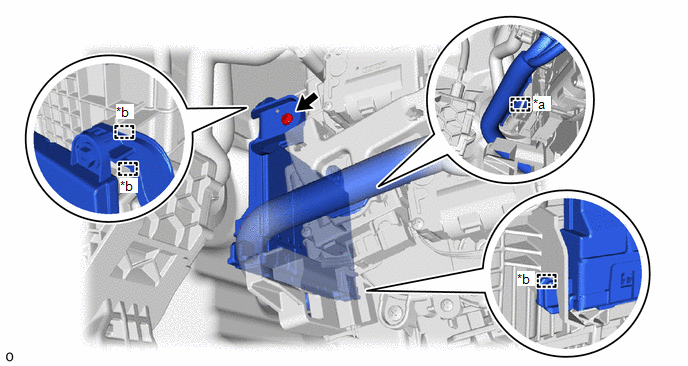

      GTY810316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp *b Guide
    5. Install the air conditioning amplifier assembly with heater bracket with the screw.
    6. Attach the clamp.
  2. INSTALL ACCELERATOR PEDAL SENSOR ASSEMBLY

    Refer to INSTALLATION [10/2017 - ]
