Installation [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus LS 500h, 2023 Lexus LS 500h, and 2022 Lexus LS 500h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL REAR LIDAR CLEANER COVER
    1. Pull out the rear LiDAR cleaner nozzle.

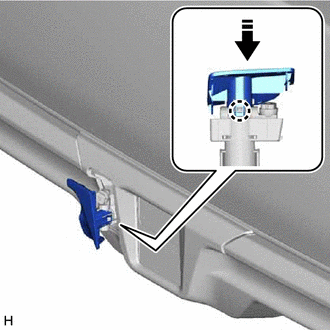

      GTY1085427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Engage the claw to install the rear LiDAR cleaner cover as shown in the illustration.
