Installation [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus LS 500h, 2023 Lexus LS 500h, and 2022 Lexus LS 500h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL REAR LIDAR CLEANER NOZZLE

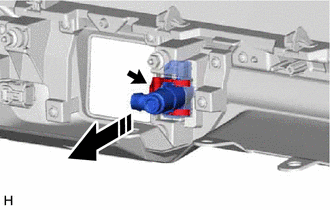

    1. Install the rear LiDAR cleaner nozzle with the clamp.
      GTY1085827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL REAR LIDAR CLEANER COVER

    See step  1

  3. INSTALL REAR LIDAR ADVANCED DRIVE SENSOR ASSEMBLY

    Refer to INSTALLATION [11/2021 - ]
