Removal [10/2023 - ]: Procedure
WARNING: This page is about a different car, the 2024 Lexus LS 500h, 2023 Lexus LS 500h, and 2022 Lexus LS 500h. However, it is still accessible from the selected car via links, so may be relevant.
- PRECAUTION (w/ Hands Free Power Trunk Lid) NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.
Refer to PRECAUTION [10/2023 - ]
- REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY (w/ Hands Free Power Trunk Lid)
Refer to PROCEDURE - Step 25
- DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL (w/ Hands Free Power Trunk Lid)
Refer to PROCEDURE - Step 4
- REMOVE REAR BUMPER ASSEMBLY
Refer to REMOVAL [10/2023 - ]
- REMOVE KICK DOOR CONTROL BRACKET
Refer to PROCEDURE - Step 6
- REMOVE REAR NO. 6 LIDAR CLEANER HOSE
Refer to PROCEDURE - Step 2

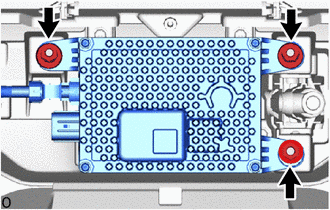

- REMOVE REAR LIDAR ADVANCED DRIVE SENSOR ASSEMBLY NOTE:
- Do not reuse the rear LiDAR advanced drive sensor assembly if it has been dropped or subjected to a severe impact.
- The rear LiDAR advanced drive sensor assembly is a precision instrument. Take care not to damage it during removal and installation.
- If the lens surface of the rear LiDAR advanced drive sensor assembly is dirty, install the rear LiDAR advanced drive sensor assembly after cleaning it with a soft cloth or the like while taking care not to damage it.
