Installation [10/2017 - ]: Procedure

1. Install a new gasket to the EGR valve assembly.
2. Install a new gasket and the EGR valve assembly to the intake manifold and EGR cooler assembly with the 2 bolts and 2 nuts.

   for bolt

   Torque: 26 N.m (265 kgf/cm, 19 ft.lbf)

   for nut

   Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

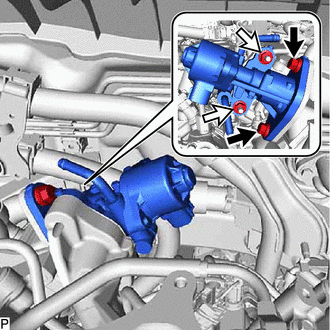

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Bolt
   	Nut

3. Connect the connector to the EGR valve assembly.

1. Connect the No. 15 water by-pass hose to the EGR valve assembly, and slide the clamp to secure the hose.

1. Install the water by-pass hose to the EGR valve assembly, and slide the clamp to secure the hose.

1. Attach the clamp and connect the motor cable to the engine motor cable bracket.
2. Attach the 2 clamps and connect the generator cable to the 2 engine motor cable brackets.

Refer to PROCEDURE - Step 11
