Installation [11/2021 - 10/2023]: Procedure

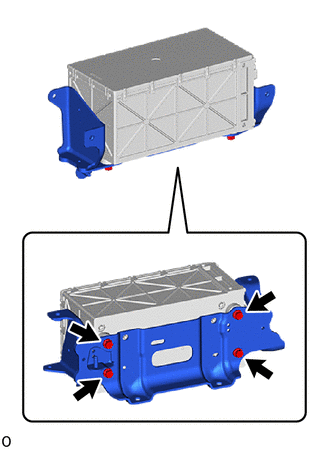

- INSTALL NO. 1 SUB-BATTERY MULTI POWER BRACKET
- INSTALL MULTI POWER CONTROL SUB-BATTERY NOTE:
- If the multi power control sub-battery is subjected to an impact, replace it with a new one.
- When storing the multi power control sub-battery, do not store for 24 hours or more on its side, flipped upside down or in a tilted condition.
- If the multi power control sub-battery was replaced, turn the power switch to ON and then off with the shift position in P and wait 3 seconds to perform ECU learning.
- Store the multi power control sub-battery in a location away from rainwater.
- Do not stand on the multi power control sub-battery.
- Refer to the table below for the combination of the multi power control ECU assembly and multi power control sub-battery.
Parts Combination 1 Combination 2 Letters on Multi Power Control ECU Label #A #B Letters on Multi Power Control Sub-battery Label #1 #2

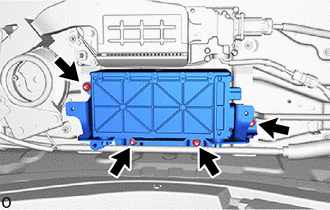

*1 Multi Power Control ECU Assembly *2 Multi Power Control Sub-battery *a Label - Install the multi power control sub-battery to the No. 2 sub-battery multi power bracket with the 4 nuts.
Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

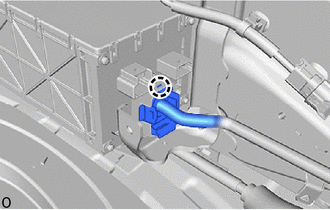

- Engage the claw and connect the sub-battery multi power hose sub-assembly to the multi power control sub-battery.NOTE:
Push in the sub-battery multi power hose sub-assembly until a click sound is heard.
- INSTALL SUB-BATTERY MULTI POWER HOSE SUB-ASSEMBLY
HINT:
Only perform this procedure when replacement of the sub-battery multi power hose sub-assembly is necessary.
- CONNECT NO. 3 FLOOR WIRE WARNING:
Wear insulated gloves.

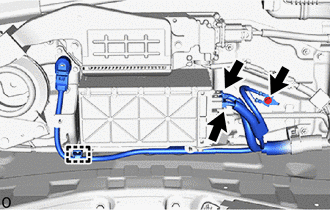

Engage the clamp and connect the No. 3 floor wire to the No. 1 sub-battery multi power bracket and No. 2 sub-battery multi power bracket.
- Connect the earth wire to the No. 2 sub-battery multi power bracket with the bolt.
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

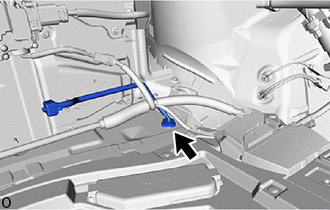

- Connect the 2 connectors.
- Connect the No. 3 floor wire to the DC/DC converter assembly with the nut.
Torque: 18 N.m (184 kgf/cm, 13 ft.lbf)
- Engage the claw to close the No. 3 floor wire terminal cover.
Install in this Direction

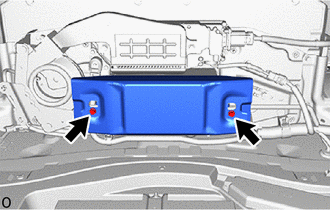

- INSTALL NO. 3 SUB-BATTERY MULTI POWER BRACKET
- INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER
HINT:
Use the same procedure described for the front luggage compartment trim cover (w/o Advanced Drive).
Refer to PROCEDURE - Step 7
- INSTALL LUGGAGE COMPARTMENT TRIM COVER LH
Refer to PROCEDURE - Step 11
- INSTALL LUGGAGE COMPARTMENT TRIM COVER RH
Refer to PROCEDURE - Step 12
- INSTALL LUGGAGE COMPARTMENT FLOOR MAT
Refer to PROCEDURE - Step 14
- INSTALL SERVICE PLUG GRIP
Refer to INSTALLATION [10/2020 - ]
- CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to INSTALLATION [10/2020 - 10/2023]
- INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
Refer to PROCEDURE - Step 13
- INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
Refer to WORK PROCEDURE [11/2021 - 10/2022] , or refer to WORK PROCEDURE [10/2022 - ]
HINT:
When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.
