Removal [10/2022 - 10/2023]: Procedure
- PRECAUTION NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.
- REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
Refer to PROCEDURE - Step 25
- DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to PROCEDURE - Step 4
- REMOVE INSTRUMENT SIDE PANEL RH
Refer to PROCEDURE - Step 11
- REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 12
- REMOVE SEMICONDUCTOR POWER INTEGRATION ECU (w/ PTC Heater)

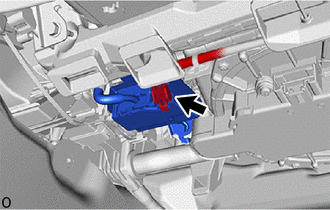

- Disconnect the power source connector.NOTE:
- Make sure the connector terminal is free from oil and grease.
- Do not subject the semiconductor power integration ECU to any impact.
- Do not use a semiconductor power integration ECU that has been dropped.
- Do not disassemble the semiconductor power integration ECU.

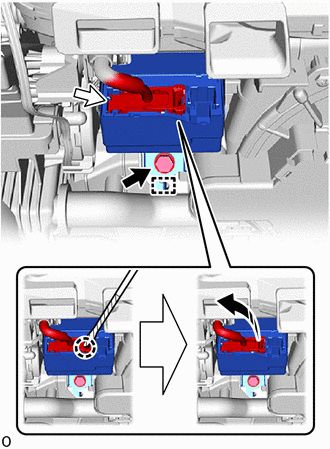

- Using a thin-bladed screwdriver with its tip wrapped with protective tape, detach the claw and disconnect the lever connector.
Rotate in this Direction Bolt Lever Connector Protective Tape NOTE:- Make sure the connector terminal is free from oil and grease.
- Do not subject the semiconductor power integration ECU to any impact.
- Do not use a semiconductor power integration ECU that has been dropped.
- Do not disassemble the semiconductor power integration ECU.
- Remove the bolt, detach the guide and remove the semiconductor power integration ECU.NOTE:
- Make sure the connector terminal is free from oil and grease.
- Do not subject the semiconductor power integration ECU to any impact.
- Do not use a semiconductor power integration ECU that has been dropped.
- Do not disassemble the semiconductor power integration ECU.
- Disconnect the power source connector.
- REMOVE SEMICONDUCTOR POWER INTEGRATION ECU (w/o PTC Heater)
HINT:
Use the same procedure as for the semiconductor power integration ECU (w/ PTC Heater).
