Removal [10/2023 - ]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read precaution thoroughly before servicing.

    Refer to PRECAUTION [10/2023 - ]

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [10/2023 - ]

  2. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 25

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 4

    WARNING:
    GTY581108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
    • If the airbag deploys for any reason, it may cause a serious accident.
  4. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to REMOVAL [10/2023 - ]

  5. REMOVE HEADUP DISPLAY

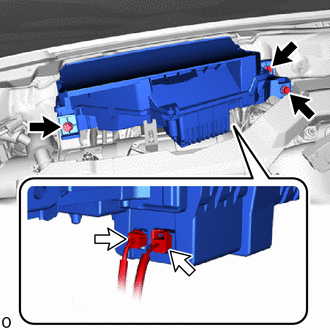

    1. GTY1238321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Connector

      Remove the 3 bolts and headup display.

    2. Disconnect the 2 connectors.
