Installation [11/2021 - 10/2023]: Procedure

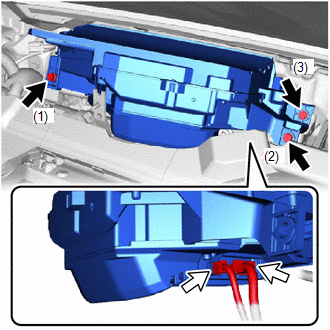

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Bolt
   	Connector

   w/o Advanced Drive:

   1. Connect the connector and temporarily install the headup display.
   2. Install the headup display with the 3 bolts in the order shown in the illustration.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

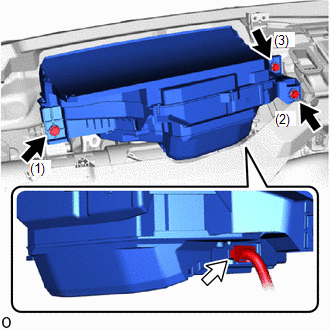

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Bolt
   	Connector

   w/ Advanced Drive:

   1. Connect the 2 connectors and temporarily install the headup display.
   2. Install the headup display with the 3 bolts in the order shown in the illustration.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

Refer to INSTALLATION [11/2021 - 10/2022] , or refer to INSTALLATION [10/2022 - 10/2023]

Refer to PROCEDURE - Step 2

Refer to PROCEDURE - Step 13

Refer to WORK PROCEDURE [11/2021 - 10/2022] , or refer to WORK PROCEDURE [10/2022 - ]

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [11/2021 - 10/2023]

• w/ Advanced Park:

  Refer to DTC CHECK / CLEAR [11/2021 - 10/2023]

• w/o Advanced Park:

  Refer to DTC CHECK / CLEAR [10/2020 - 10/2023]

• w/ Advanced Park:

  Refer to OPERATION CHECK [11/2021 - 10/2023]

• w/o Advanced Park:

  Refer to OPERATION CHECK [11/2021 - 10/2023]
