Removal [10/2017 - 09/2018]: Procedure

Refer to PRECAUTION [10/2017 - 10/2020]

Refer to REMOVAL [10/2017 - 09/2018]

1. Support the front differential carrier assembly with a jack.
   WARNING:

   As the front differential carrier assembly is very heavy, securely support it with the jack.

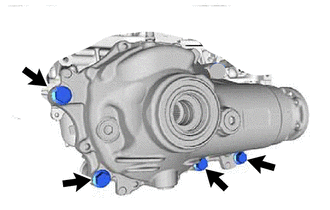

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove the 4 bolts and front differential carrier assembly.

   NOTE:

   • Do not damage the installation surface when removing the front differential carrier assembly.
   • The remaining oil may leak out when removing the front differential carrier assembly.
