Installation [10/2017 - ]: Procedure

1. Support the front differential carrier assembly with a jack and temporarily install it to the oil pan with the 4 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   WARNING:

   As the front differential carrier assembly is very heavy, securely support it with the jack.

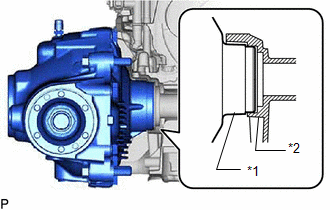

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Front Differential Carrier Retainer Sub-assembly
   *2	Oil Pan Sub-assembly

   Align the front differential carrier retainer sub-assembly and oil pan so that their ends are aligned and tighten the 4 bolts to install the front differential carrier assembly.

   Torque: 81 N.m (826 kgf/cm, 60 ft.lbf)

Refer to INSTALLATION [10/2017 - 09/2018] , or refer to INSTALLATION [09/2018 - 10/2020] , or refer to INSTALLATION [10/2020 - 10/2023] , or refer to INSTALLATION [10/2023 - ]
