Disassembly [10/2020 - 11/2021]: Procedure

  1. REMOVE OUTER MIRROR LH

    See step  1

  2. REMOVE NO. 2 OUTER MIRROR COVER LH
    1. Remove the screw.
      GTY817864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

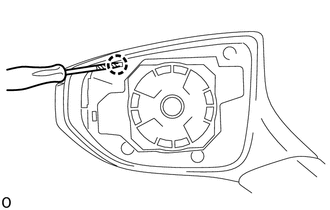

    2. GTY820400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

      Using a thin-bladed screwdriver, detach the claw.

      HINT:

      Tape the thin-bladed screwdriver tip before use.

    3. Detach the claw and remove the No. 2 outer mirror cover LH (visor cover A).
      GTY966159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    4. Remove the 3 screws.
      GTY817861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Using a thin-bladed screwdriver, detach the claw.
      GTY777128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

      HINT:

      Tape the thin-bladed screwdriver tip before use.

    6. w/ Advanced Park:
      GTY967333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Outer Mirror Tape
      1. Remove the outer mirror tape.
      2. Detach the guide and disconnect the connector.
      3. Detach the claw.
        GTY968045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction
      4. GTY968163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Outer Mirror Tape

        Remove the 2 outer mirror tapes.

      5. Detach the guide.
      6. Disconnect the 2 connectors and remove the No. 2 outer mirror cover LH (visor cover B).
    7. w/o Advanced Park:

      Remove the No. 2 outer mirror cover LH (visor cover B).

      GTY791871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  3. REMOVE SIDE TURN SIGNAL LIGHT ASSEMBLY LH

    Refer to PROCEDURE - Step 3

  4. REMOVE SIDE TELEVISION CAMERA ASSEMBLY LH

    Refer to PROCEDURE - Step 3

  5. REMOVE PARKING ASSIST LIGHT LH (w/ Advanced Park)

    -

  6. REMOVE OUTER MIRROR ACTUATOR ASSEMBLY LH
    1. Remove the No. 2 outer mirror cover LH (visor cover assembly LH) from the outer mirror actuator assembly LH.
      GTY783559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
