Disassembly [10/2017 - 10/2020]: Procedure

Refer to PROCEDURE - Step 5 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 5 [09/2018 - 10/2020]

1. Disconnect the 4 connectors.
   NOTE:

   Do not apply excessive loads to the retainer. Otherwise, it may peel off.

2. Detach the clamp and remove the No. 3 luggage room wire.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A

   w/ Hands Free Power Trunk Lid

   -

   -

Refer to PROCEDURE - Step 6 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 6 [09/2018 - 10/2020]

Refer to PROCEDURE - Step 7 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 7 [09/2018 - 10/2020]

Refer to PROCEDURE - Step 8 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 8 [09/2018 - 10/2020]

Refer to PROCEDURE - Step 9 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 9 [09/2018 - 10/2020]

Refer to PROCEDURE - Step 10 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 10 [09/2018 - 10/2020]

Refer to PROCEDURE - Step 11 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 11 [09/2018 - 10/2020]

1. Remove the screw.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Grommet
   	Remove in this Direction

2. Detach the guide and remove the rear bumper side LH.
3. Remove the grommet.

HINT:

Use the same procedure described for the LH side.

1. Remove the 2 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

2. Detach the claw and remove the rear bumper side moulding LH as shown in the illustration.

HINT:

Use the same procedure described for the LH side.

1. Remove the screw.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

2. Detach the guide and claw and remove the reflex reflector assembly LH as shown in the illustration.

HINT:

Use the same procedure described for the LH side.

1. Remove the 4 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Use the same procedure for the RH and LH side.

2. Remove the 2 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Use the same procedure for the RH and LH side.

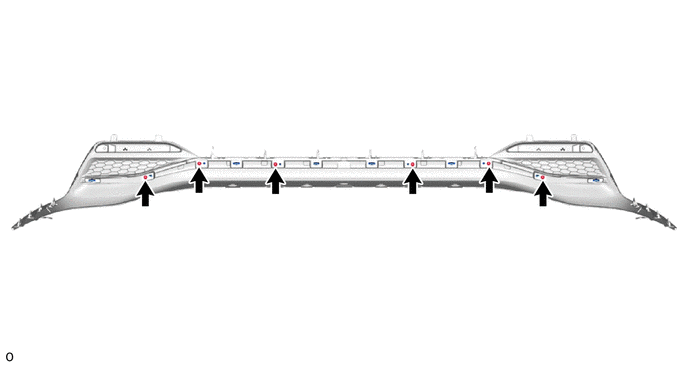

3. Remove the 6 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Detach the claw.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Use the same procedure for the RH and LH side.

5. Remove the rear bumper lower cover as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Rear Bumper Cover
   	Remove in this Direction

1. Remove the 6 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Detach the claw and guide and remove the rear bumper center moulding as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

   -

   -

1. Detach the claw.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

2. Detach the anti-drop hook and remove the rear bumper piece LH as shown in the illustration.

HINT:

Use the same procedure described for the LH side.

HINT:

When removing the No. 1 moulding tape, heat the rear bumper cover and No. 1 moulding tape using a heat light.

Standard

WARNING:

• Do not touch the heat light and heated parts.
• Touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

1. Using a heat light, heat the rear bumper cover and No. 1 moulding tape.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove the No. 1 moulding tape.

   HINT:

   Use the same procedure for the RH and LH side.

HINT:

When removing the rear bumper arm, heat the rear bumper cover and rear bumper arm using a heat light.

Standard

WARNING:

• Do not touch the heat light and heated parts.
• Touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

1. Using a heat light, heat the rear bumper cover and rear bumper arm.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove the 2 rear bumper arms.

   HINT:

   Use the same procedure for the RH and LH side.

1. Detach the guide and remove the rear bumper energy absorber.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

1. Remove the bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape
   	Remove in this Direction

2. Using a screwdriver, detach the claw and remove the rear bumper arm reinforcement LH.

HINT:

Use the same procedure described for the LH side.

1. Remove the 5 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Detach the guide and remove the rear bumper bar corner reinforcement LH.

HINT:

Use the same procedure described for the LH side.

1. Remove the 8 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Detach the guide and remove the rear bumper reinforcement sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

1. Remove the 4 screws and rear bumper lower retainer LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedure described for the LH side.

1. Using a screwdriver, turn the clip 90° and detach the clip as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	90°
   	Rotation Direction
   	Remove in this Direction

2. Detach the claw and remove the rear bumper lower side retainer LH as shown in the illustration.

HINT:

Use the same procedure described for the LH side.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	90°
   	Rotation Direction
   	Remove in this Direction

   Using a screwdriver, turn the clip 90° and detach the clip as shown in the illustration.

2. Detach the claw and remove the rear bumper side support LH as shown in the illustration.

HINT:

Use the same procedure described for the LH side.
