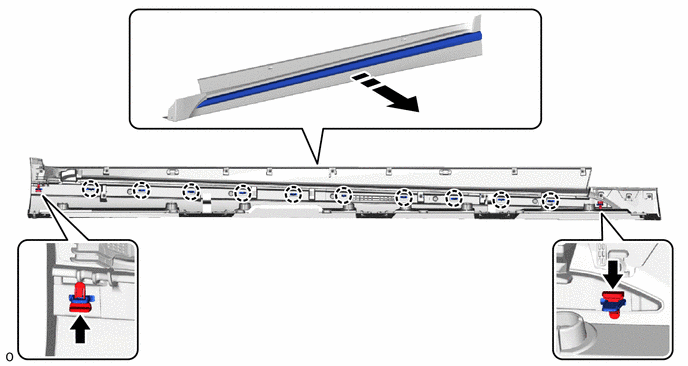

- REMOVE ROCKER PANEL MOULDING COVER LH
- Remove the 2 clips.
- Detach the claw and remove the rocker panel moulding cover LH as shown in the illustration.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 |
Remove in this Direction |
- |
- |
- REMOVE NO. 1 SIDE MUDGUARD PROTECTOR
HINT:
When removing the No. 1 side mudguard protector, heat the body rocker panel moulding assembly LH and No. 1 side mudguard protector using a heat light.
Standard
| Item |
Temperature |
| Body Rocker Panel Moulding Assembly LH |
20 to 30°C (68 to 86°F) |
| No. 1 Side Mudguard Protector |
20 to 30°C (68 to 86°F) |
WARNING:
- Do not touch the heat light and heated parts.
- Touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *a |
Heated Part |
| *b |
Heat Light |
- Remove the No. 1 side mudguard protector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE FRONT ROCKER PANEL MOULDING END COVER LH
HINT:
When removing the front rocker panel moulding end cover LH, heat the body rocker panel moulding assembly LH and front rocker panel moulding end cover LH using a heat light.
Standard
| Item |
Temperature |
| Body Rocker Panel Moulding Assembly LH |
20 to 30°C (68 to 86°F) |
| Front Rocker Panel Moulding End Cover LH |
20 to 30°C (68 to 86°F) |
WARNING:
- Do not touch the heat light and heated parts.
- Touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *a |
Heated Part |
| *b |
Heat Light |
- for Front Side:

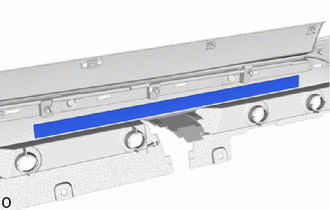

- Remove the front rocker panel moulding end cover LH.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- for Rear Side:
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

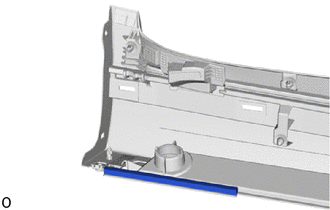

Remove the front rocker panel moulding end cover LH.
- REMOVE NO. 1 ROCKER PANEL MOULDING PROTECTOR (CAULKING SPONGE)
HINT:
When removing the No. 1 rocker panel moulding protector, heat the body rocker panel moulding assembly LH and No. 1 rocker panel moulding protector using a heat light.
Standard
| Item |
Temperature |
| Body Rocker Panel Moulding Assembly LH |
20 to 30°C (68 to 86°F) |
| No. 1 Rocker Panel Moulding Protector |
20 to 30°C (68 to 86°F) |
WARNING:
- Do not touch the heat light and heated parts.
- Touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *a |
Heated Part |
| *b |
Heat Light |

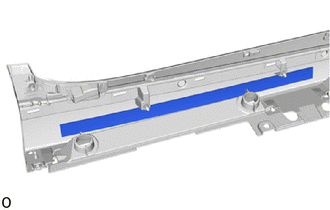

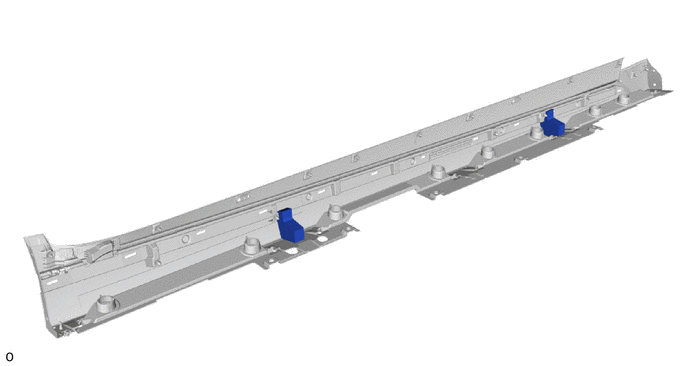

- Remove the 2 No. 1 rocker panel moulding protectors.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE NO. 1 ROCKER PANEL MOULDING PROTECTOR (ALUMINUM TAPE)
HINT:
When removing the No. 1 rocker panel moulding protector, heat the body rocker panel moulding assembly LH and No. 1 rocker panel moulding protector using a heat light.
Standard
| Item |
Temperature |
| Body Rocker Panel Moulding Assembly LH |
20 to 30°C (68 to 86°F) |
| No. 1 Rocker Panel Moulding Protector |
20 to 30°C (68 to 86°F) |
WARNING:
- Do not touch the heat light and heated parts.
- Touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *a |
Heated Part |
| *b |
Heat Light |
- for Front Side:
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

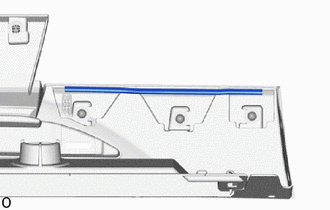

- Remove the No. 1 rocker panel moulding protector.
- for Rear Side:
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

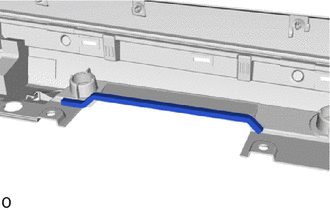

- Remove the No. 1 rocker panel moulding protector.
