Components [10/2017 - ]

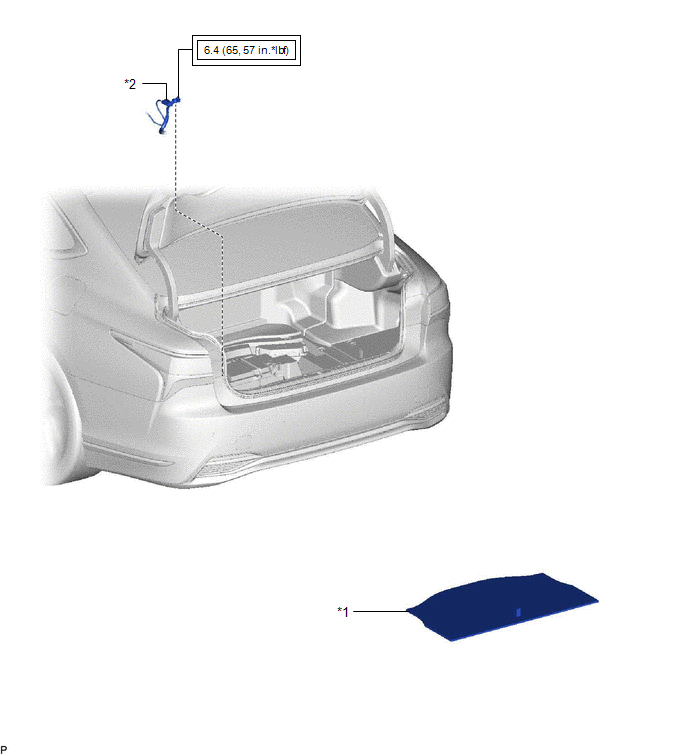

Fig 1: Front Door Window Frame Moulding Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY	*2	NEGATIVE AUXILIARY BATTERY TERMINAL
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

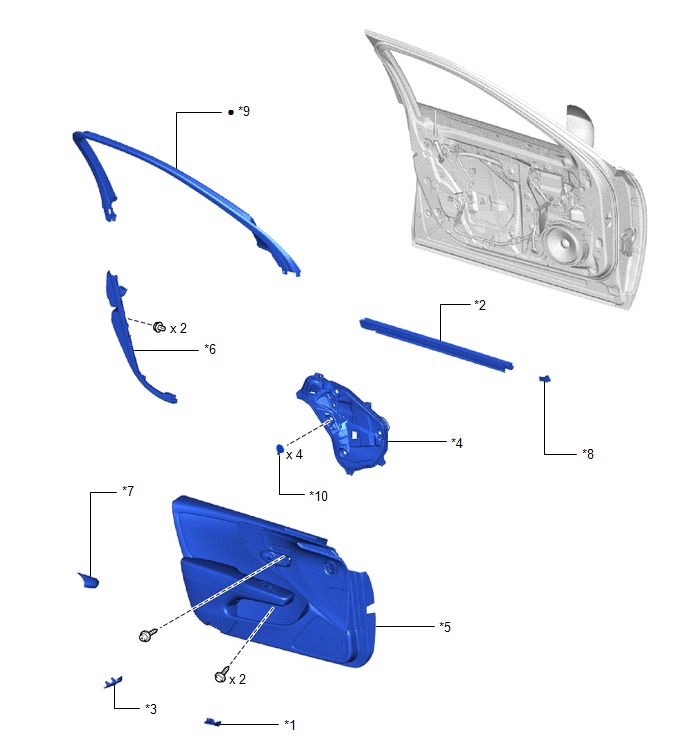

Fig 2: Front Door Window Frame Moulding Replacement Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT DOOR ARMREST COVER LH	*2	FRONT DOOR GLASS INNER WEATHERSTRIP LH
*3	FRONT DOOR NO. 2 ARMREST COVER LH	*4	FRONT DOOR SERVICE HOLE COVER LH
*5	FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH	*6	FRONT DOOR TRIM COVER LH
*7	FRONT DOOR TRIM UPPER COVER LH	*8	FRONT DOOR VENT SEAL LH
*9	UPPER DOOR FRAME GARNISH LH	*10	SERVICE HOLE COVER CLIP
•	Non-reusable part	-	-

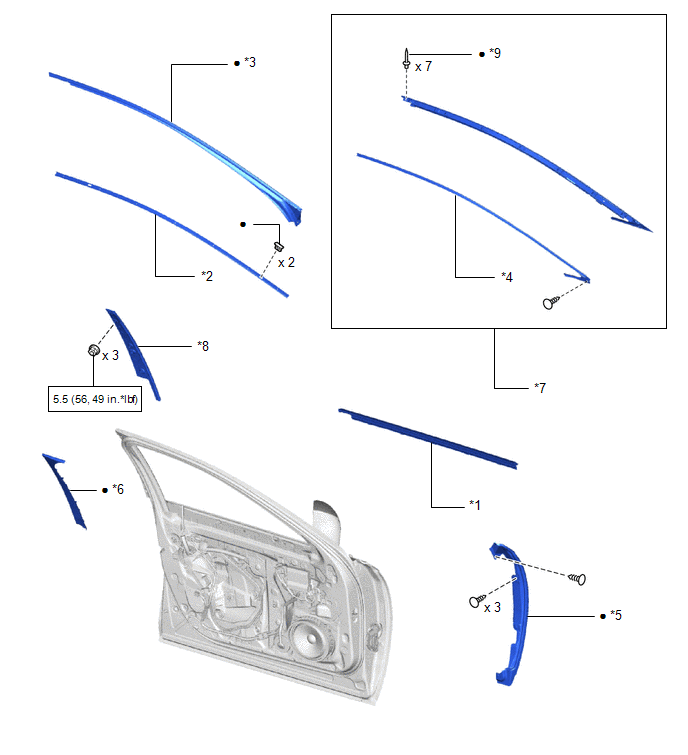

Fig 3: Front Door Window Frame Moulding Replacement Components With Torque Specifications (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT DOOR BELT MOULDING LH	*2	FRONT DOOR FRONT WINDOW FRAME MOULDING LH
*3	FRONT DOOR NO. 2 WEATHERSTRIP LH	*4	FRONT DOOR NO. 3 GLASS RUN LH
*5	FRONT DOOR NO. 3 WEATHERSTRIP LH	*6	FRONT DOOR REAR BELT MOULDING END COVER LH
*7	FRONT DOOR UPPER WINDOW FRAME MOULDING LH	*8	FRONT DOOR WINDOW FRAME MOULDING LH (CENTER PILLAR SIDE)
*9	RIVET	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

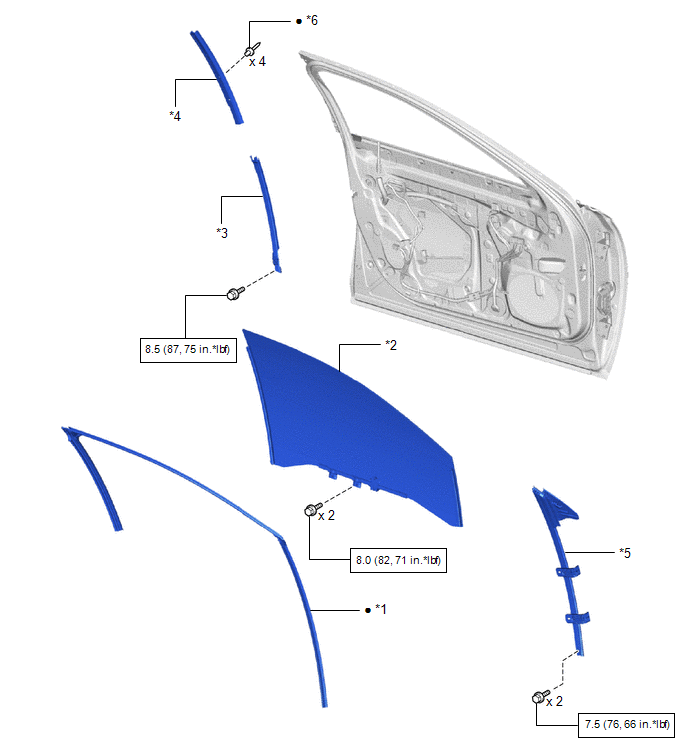

Fig 4: Front Door Window Frame Moulding Replacement Components With Torque Specifications (4 Of 4)

Callout	Description	Callout	Description
*1	FRONT DOOR GLASS RUN LH	*2	FRONT DOOR GLASS SUB-ASSEMBLY LH
*3	FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY LH	*4	FRONT DOOR REAR WINDOW FRAME LH
*5	FRONT PILLAR UPPER COVER SUB-ASSEMBLY LH	*6	RIVET
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
