Components [10/2017 - ]

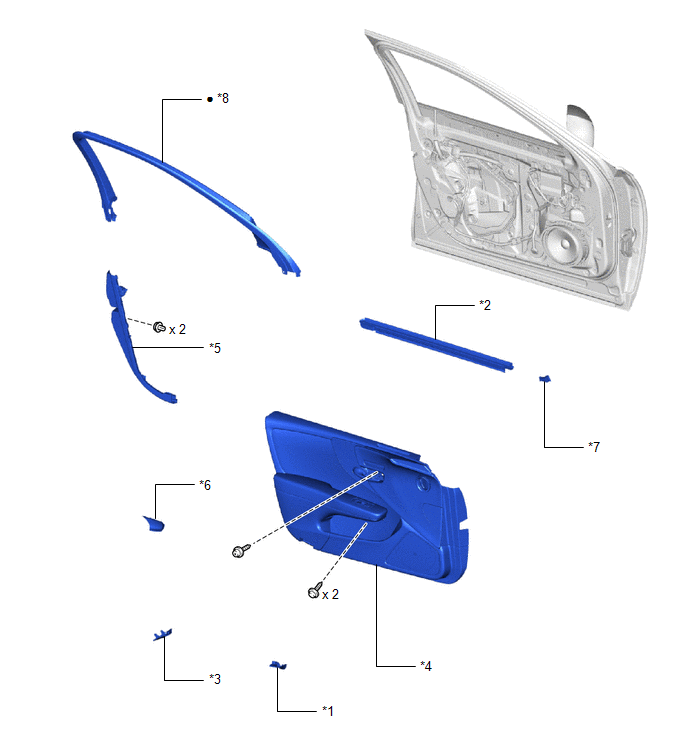

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT DOOR ARMREST COVER LH | *2 | FRONT DOOR GLASS INNER WEATHERSTRIP LH |
| *3 | FRONT DOOR NO. 2 ARMREST COVER LH | *4 | FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH |
| *5 | FRONT DOOR TRIM COVER LH | *6 | FRONT DOOR TRIM UPPER COVER LH |
| *7 | FRONT DOOR VENT SEAL LH | *8 | UPPER DOOR FRAME GARNISH LH |
| • | Non-reusable part | - | - |

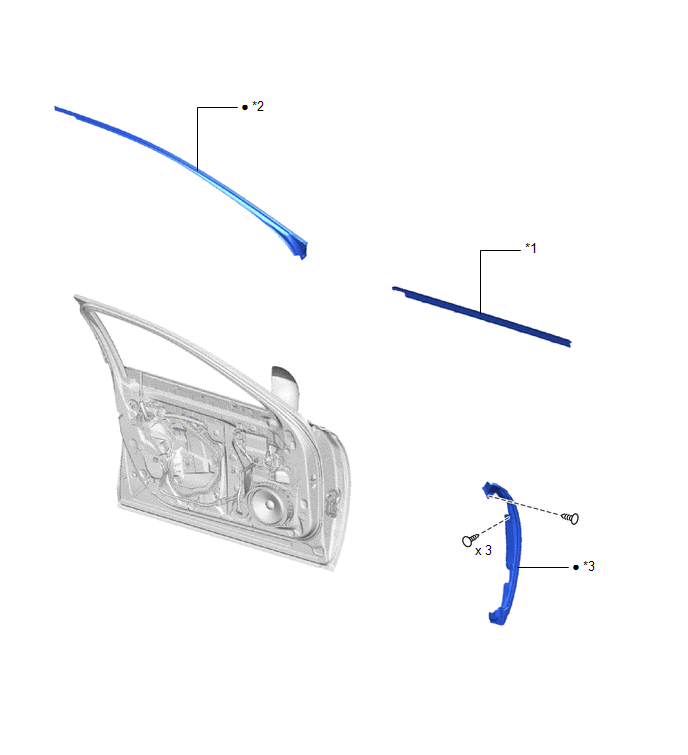

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT DOOR BELT MOULDING LH | *2 | FRONT DOOR NO. 2 WEATHERSTRIP LH |
| *3 | FRONT DOOR NO. 3 WEATHERSTRIP LH | - | - |
| • | Non-reusable part | - | - |
