Removal [10/2022 - 10/2023]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read precaution thoroughly before servicing.

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [10/2022 - 10/2023]

  2. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 25

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 4

    WARNING:
    GTY581108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
    • If the airbag deploys for any reason, it may cause a serious accident.
  4. REMOVE AIR CONDITIONING UNIT ASSEMBLY

    Refer to REMOVAL [10/2022 - 10/2023]

  5. REMOVE ID CODE BOX (IMMOBILIZER CODE ECU)
    NOTE:

    Do not reuse dropped or damaged parts.

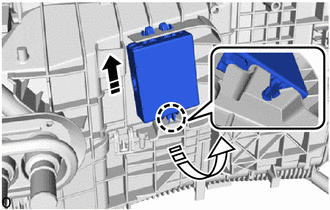

    1. Detach the claw as shown in the illustration.
      GTY798603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)

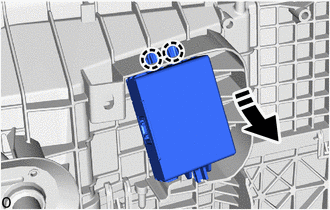

    2. Detach the claw to remove the ID code box (immobilizer code ECU) as shown in the illustration.
      GTY791893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
