Installation [10/2020 - 11/2021]: Procedure

INSTALL ID CODE BOX (IMMOBILIZER CODE ECU)

NOTE:

Do not reuse dropped or damaged parts.

Attach the claw as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

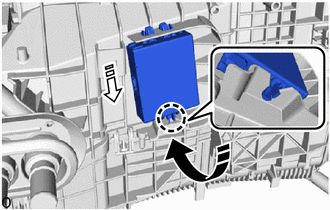

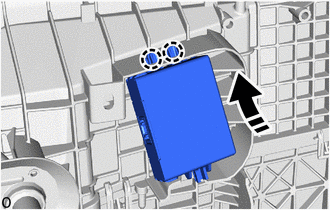

Attach the claw to install the ID code box (immobilizer code ECU) as shown in the illustration.

	Install in this Direction (1)
	Install in this Direction (2)

INSTALL AIR CONDITIONING UNIT ASSEMBLY
Refer to INSTALLATION [10/2020 - 11/2021]
CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to PROCEDURE - Step 2
INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
Refer to PROCEDURE - Step 13
INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
Refer to WORK PROCEDURE [10/2020 - 11/2021]

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [10/2020 - 11/2021]
PERFORM DIAGNOSTIC SYSTEM CHECK
- w/ Advanced Park:
  -
- w/o Advanced Park:
  Refer to DTC CHECK / CLEAR [10/2020 - 10/2023]
CHECK SRS WARNING LIGHT
- w/ Advanced Park:
  -
- w/o Advanced Park:
  Refer to OPERATION CHECK [10/2020 - 11/2021]
PERFORM CODE REGISTRATION
Refer to REGISTRATION [10/2020 - 10/2022]
