Installation [10/2017 - 10/2020]: Procedure

1. Apply MP grease to the sliding parts of the hood lock assembly.
2. Connect the hood lock control cable assembly and hood lock control assembly to the engine hood courtesy switch (hood lock assembly).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

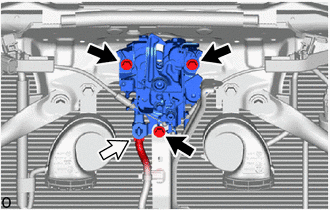

3. Install the engine hood courtesy switch (hood lock assembly) with the 3 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Bolt
   	Connector

   Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

4. Connect the connector.

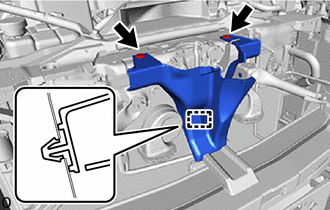

1. Attach the clamp and temporary install the hood lock release lever protector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Install the 2 clips.

1. for Sport Package:

   Refer to INSTALLATION [10/2017 - 10/2020]

2. except Sport Package:

   Refer to INSTALLATION [10/2017 - 10/2020]

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 2

Refer to CALIBRATION [10/2017 - 11/2021]
