Removal [10/2022 - 10/2023]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read precaution thoroughly before servicing.

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [10/2022 - 10/2023]

  2. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 25

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 4

    WARNING:
    • Wait at least 60 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
    • If the airbag deploys for any reason, it may cause a serious accident.
    GTY581108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 7

  5. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8

  6. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 13

  7. REMOVE COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 9

  8. REMOVE LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 14

  9. REMOVE NO. 1 CONSOLE UPPER PANEL GARNISH

    Refer to PROCEDURE - Step 3

  10. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 10

  11. REMOVE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
    NOTE:

    Do not reuse dropped or damaged parts.

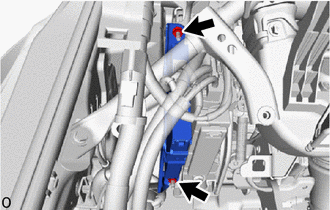

    1. Remove the 2 nuts and certification ECU (smart key ECU assembly).
      GTY791584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

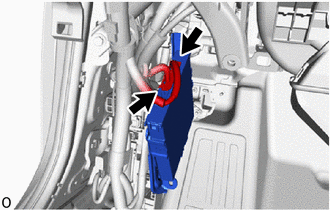

    2. Disconnect the 2 connectors and remove the certification ECU (smart key ECU assembly).
      GTY801714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
