Removal [10/2020 - ]: Procedure

  1. REMOVE TELEVISION CAMERA ASSEMBLY WITH INNER MIRROR CAMERA ASSEMBLY

    Refer to REMOVAL [10/2020 - 11/2021] , or refer to REMOVAL [11/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

  2. REMOVE CAMERA CLEANER NOZZLE

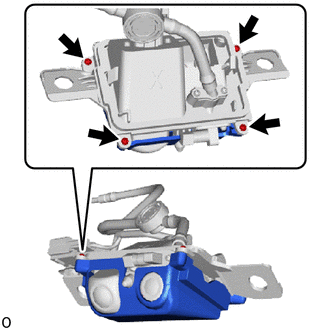

    1. Remove the 4 screws and television camera cover.
      GTY966171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. GTY966484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the screw and camera cleaner nozzle.
