Removal [10/2020 - 11/2021]: Procedure

Refer to REMOVAL [10/2020 - 11/2021]

See step  1

HINT:

Use the same procedure for the RH and LH sides.

1. Detach the clamp.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

2. Detach the claw, clamp and disconnect the No. 1 headlight cleaner hose as shown in the illustration.
3. Remove the screw.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Detach the 2 claw and remove the headlight washer actuator sub-assembly LH as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

5. Remove the spring nut from the headlight washer actuator sub-assembly LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

HINT:

Use the same procedure for the RH and LH sides.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

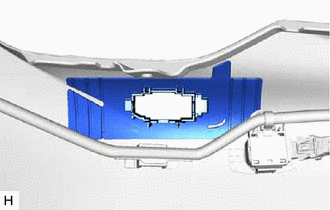

1. Using a heat light, heat the No. 2 washer bracket.
   WARNING:

   • Do not touch the heat light and heated parts.
   • Touching the heat light may result in burns.
   • Touching heated parts for a long time may result in burns.

   HINT:

   20 to 30°C for 3 to 5 minutes.

2. Remove the No. 2 washer bracket.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedure described for the No. 2 washer bracket.
