Removal [10/2017 - 10/2020]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY
    1. except Sport Package:

      Refer to REMOVAL [10/2017 - 09/2018] , or refer to REMOVAL [09/2018 - 10/2020]

    2. for Sport Package:

      Refer to REMOVAL [10/2017 - 09/2018] , or refer to REMOVAL [09/2018 - 10/2020]

  2. REMOVE FRONT SIDE RADAR SENSOR

    HINT:

    • Use the same procedure for the RH side and LH side.
    • The following procedure is for the LH side.
    1. Disconnect the connector.
      GTY791533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Connector
      Nut
    2. Detach the wire harness clamp.
    3. Remove the 3 nuts and front side radar sensor.

      HINT:

      Replace nut with a new one.

  3. REMOVE FRONT FENDER REINFORCEMENT SUB-ASSEMBLY TOP LH

    HINT:

    Use the same procedure described for the RH side.

    Refer to PROCEDURE - Step 2

  4. REMOVE HEADLIGHT ASSEMBLY LH

    HINT:

    Use the same procedure described for the RH side.

    Refer to PROCEDURE - Step 3

  5. REMOVE FRONT SIDE RADAR SENSOR BRACKET LH

    HINT:

    Use the same procedure described for the RH side.

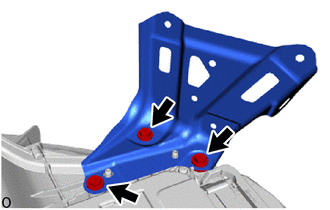

    1. Remove the 3 bolts and front side radar sensor bracket LH.
      GTY811667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
