Removal [10/2017 - 10/2020]: Procedure

  1. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY LH

    Refer to REMOVAL [10/2017 - 10/2020]

  2. REMOVE OUTER MIRROR LH

    Refer to REMOVAL [10/2017 - ]

  3. REMOVE NO. 2 OUTER MIRROR COVER LH

    Refer to PROCEDURE - Step 2

  4. REMOVE SIDE TELEVISION CAMERA ASSEMBLY LH
    1. Remove the outer mirror tape.
      GTY789907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction Direction to Spread the Claw
    2. Pull in the direction of the arrow in the claw to remove the camera connector clamp.
    3. Disconnect the connector.

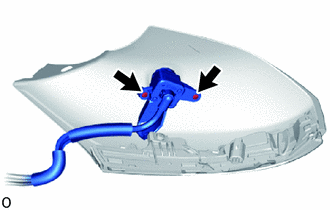

    4. GTY783520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 screws and side television camera assembly LH.
