Installation [09/2019 - 10/2020]: Procedure

INSTALL VEHICLE APPROACHING SPEAKER ASSEMBLY

NOTE:

When installing the vehicle approaching speaker, take care not to damage it.
Do not reuse a vehicle approaching speaker that has been dropped or subjected to a strong shock.
Do not push the vehicle approaching speaker assembly center area.

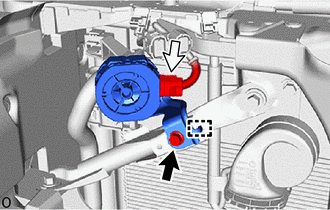

Attach the guide and install the vehicle approaching speaker assembly with the bolt.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Bolt
	Connector

Torque: 19 N.m (194 kgf/cm, 14 ft.lbf)

INSTALL FRONT BUMPER ASSEMBLY
1. for Sport Package:
  Refer to INSTALLATION [10/2017 - 10/2020]
2. except Sport Package:
  Refer to INSTALLATION [10/2017 - 10/2020]
ADJUST FRONT TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)
Refer to CALIBRATION [10/2017 - 11/2021]
