Removal [10/2020 - 11/2021]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 25

  2. PRECAUTION
    WARNING:

    Be sure to read Precaution thoroughly before servicing.

    GTY607029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    w/ Advanced Park:

    Refer to PRECAUTION [10/2020 - 11/2021]

    w/o Advanced Park:

    -

    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [10/2020 - 11/2021]

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 4

    WARNING:
    • Wait at least 60 seconds after disconnecting the cable from the negative(-) auxiliary battery terminal to disable the SRS system.
    • If the airbag deploys for any reason, it may cause a serious accident.
    GTY581108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to REMOVAL [10/2020 - 11/2021]

  5. REMOVE STOP LIGHT SWITCH ASSEMBLY

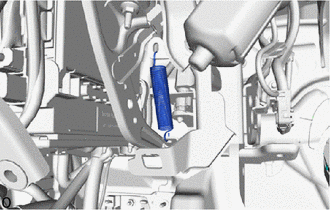

    1. Remove the return spring.
      GTY791146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

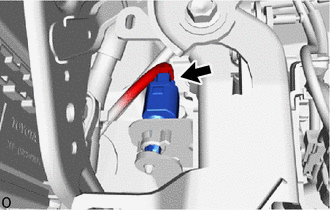

    2. Disconnect the connector.
      GTY791145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

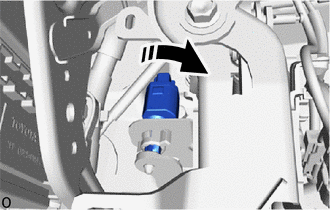

    3. Turn the stop light switch assembly counterclockwise and remove it.
      GTY788700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Turn in this Direction
  6. REMOVE STOP LIGHT SWITCH MOUNTING ADJUSTER

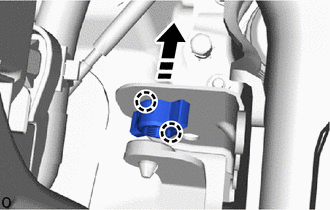

    1. Detach the claw and remove the stop light switch mounting adjuster.
      GTY820789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
      NOTE:

      The stop light switch mounting adjuster must not be reused.
