Components [10/2017 - ]

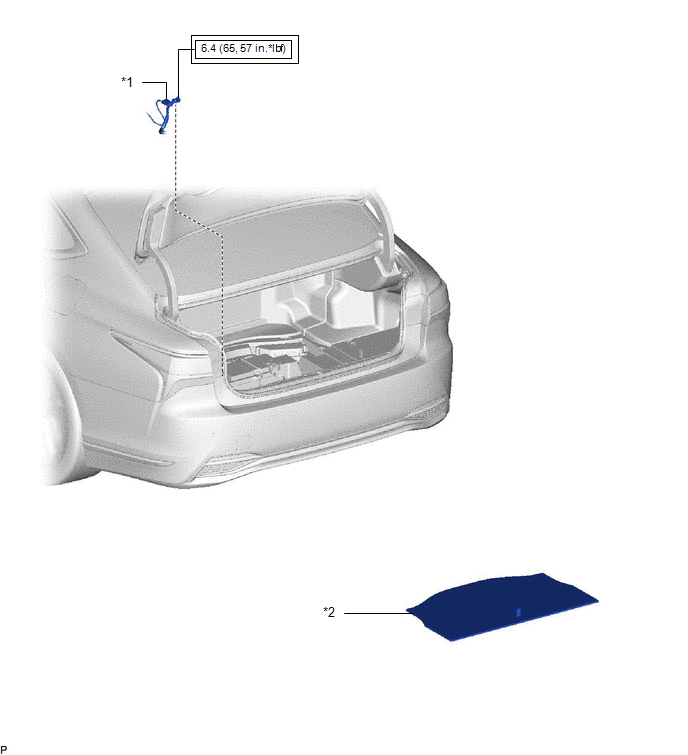

Fig 1: Stop Light Switch Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NEGATIVE AUXILIARY BATTERY TERMINAL	*2	LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

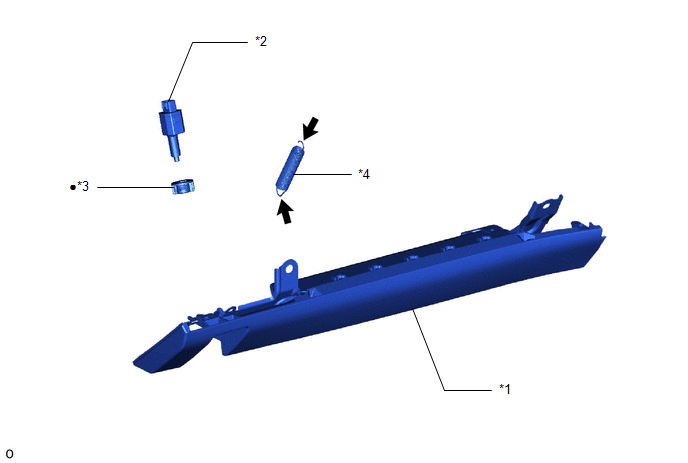

Fig 2: Stop Light Switch Replacement Components (2 Of 2)

Callout	Description	Callout	Description
*1	LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY	*2	STOP LIGHT SWITCH ASSEMBLY
*3	STOP LIGHT SWITCH MOUNTING ADJUSTER	*4	RETURN SPRING
	MP Grease	•	Non-reusable part
