Components [10/2020 - 10/2023]

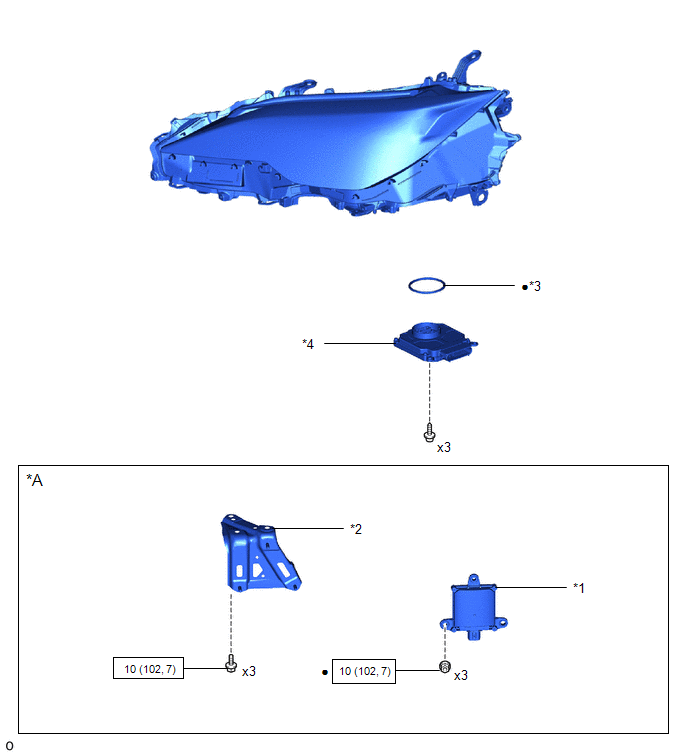

Fig 1: Headlight ECU Replacement Components With Torque Specifications [10/2020 - 10/2023]
GTY970727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/ Front Side Radar - -
*1 FRONT SIDE RADAR SENSOR *2 FRONT SIDE RADAR SENSOR BRACKET LH
*3 HEADLIGHT ECU SUB-ASSEMBLY LH *4 HEADLIGHT GASKET
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
