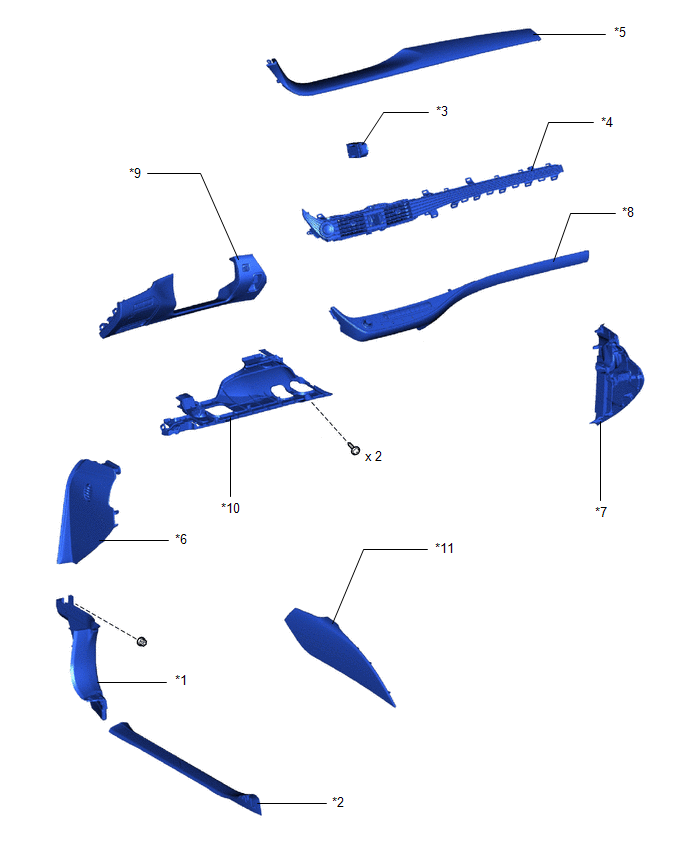

Components [10/2017 - ]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | COWL SIDE TRIM BOARD LH | *2 | FRONT DOOR SCUFF PLATE LH |
| *3 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY | *4 | INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY |
| *5 | INSTRUMENT PANEL SAFETY PAD INSERT SUB-ASSEMBLY | *6 | INSTRUMENT SIDE PANEL LH |
| *7 | INSTRUMENT SIDE PANEL RH | *8 | LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY |
| *9 | LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY | *10 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
| *11 | NO. 2 CONSOLE UPPER PANEL GARNISH | - | - |
