Automatic Light Control Sensor
>>
Components [10/2017 - ]
Components [10/2017 - ]

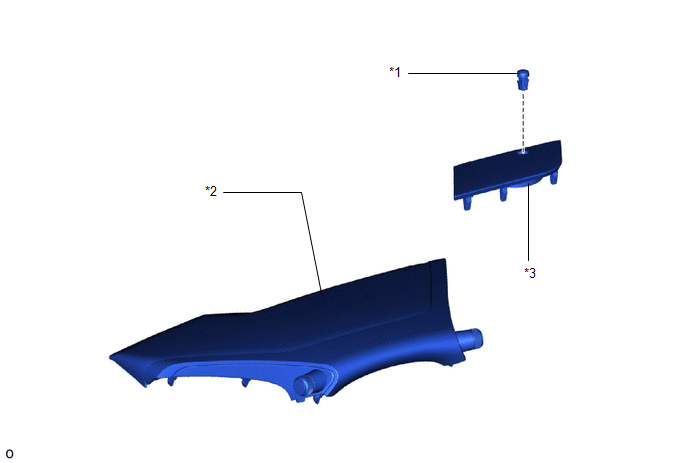

Fig 1: Automatic Light Control Sensor Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
AUTOMATIC LIGHT CONTROL SENSOR
*2
NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
*3
NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
-
-
