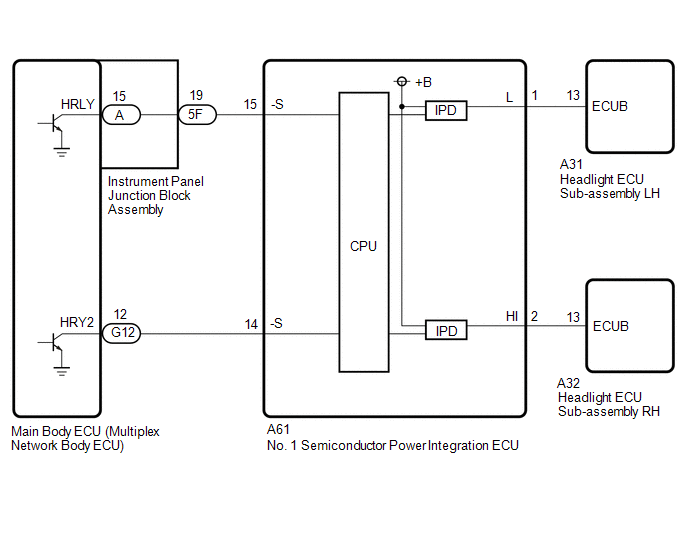

DTC B242F: Open in B Power Line [10/2017 - 10/2020]: Wiring Diagram

GTY827826

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
