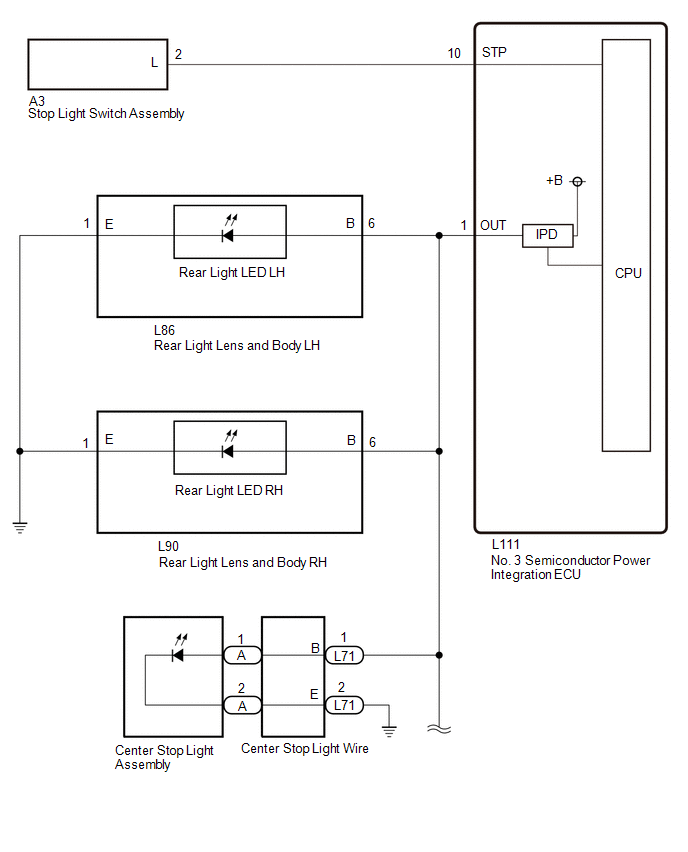

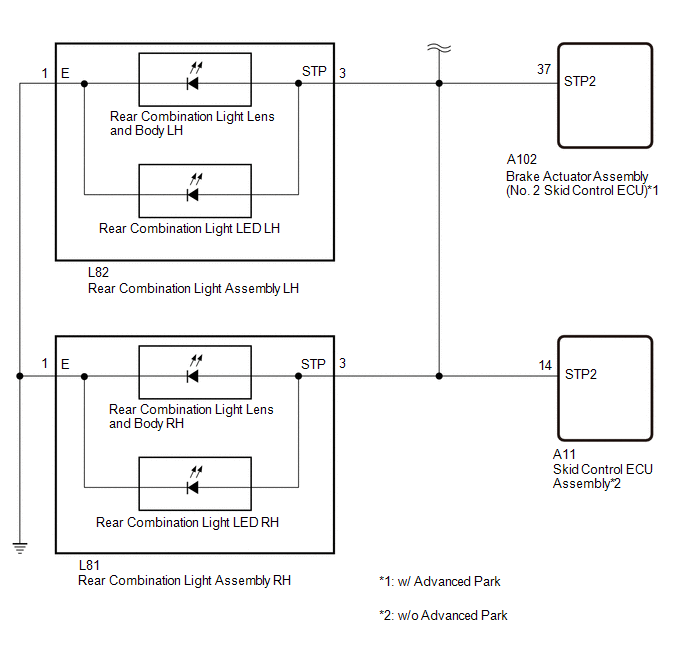

Stop Light Circuit [11/2021 - 10/2023]: Wiring Diagram

GTY797502

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

GTY970077

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
