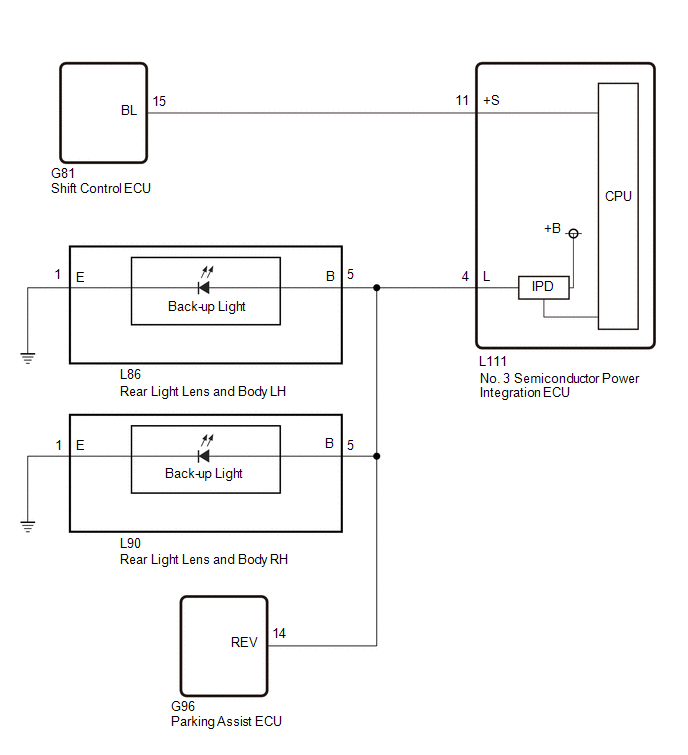

Back-up Light Circuit [10/2020 - 11/2021]: Wiring Diagram

GTY775806

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
