Parts Location [11/2021 - 10/2022]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

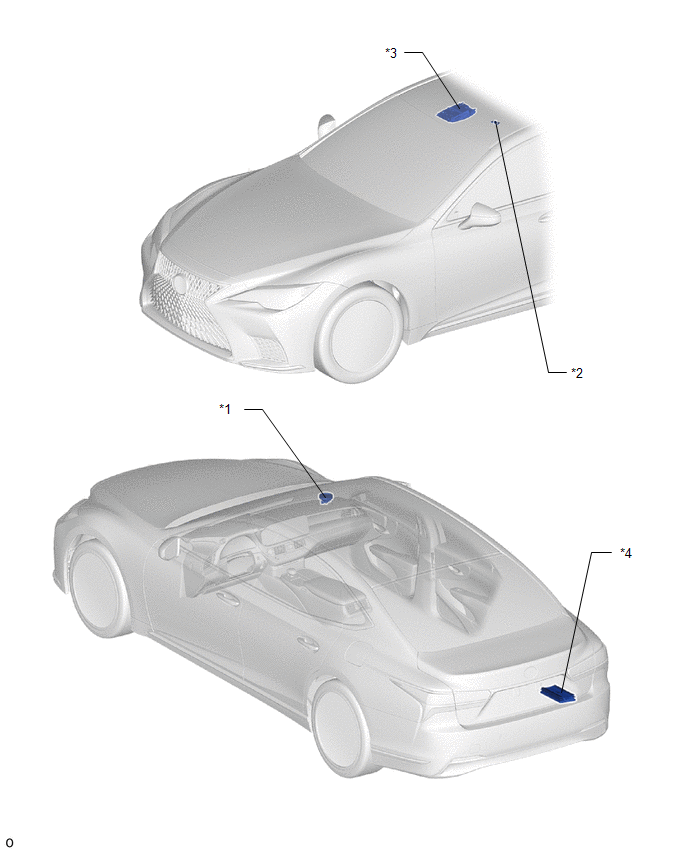

*1	FRONT NO. 2 SPEAKER ASSEMBLY RH	*2	TELEPHONE MICROPHONE ASSEMBLY
*3	MAP LIGHT ASSEMBLY - MANUAL (SOS) SWITCH	*4	STEREO COMPONENT AMPLIFIER ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

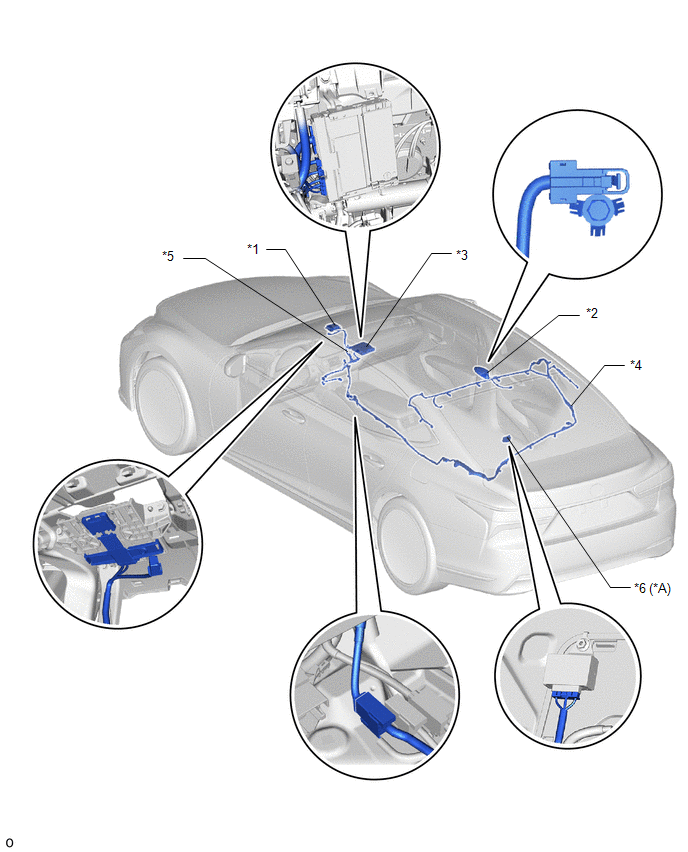

*A	w/ Advanced Drive System	-	-
*1	TELEPHONE AND GPS ANTENNA (FOR FRONT SIDE)	*2	TELEPHONE AND GPS ANTENNA (FOR ROOF SIDE)
*3	DCM (TELEMATICS TRANSCEIVER)	*4	TELEPHONE AND GPS ANTENNA CORD (ANTENNA CORD SUB-ASSEMBLY [FLOOR])
*5	TELEPHONE ANTENNA CORD (ANTENNA CORD SUB-ASSEMBLY [I/P])	*6	ANTENNA DIVIDER

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

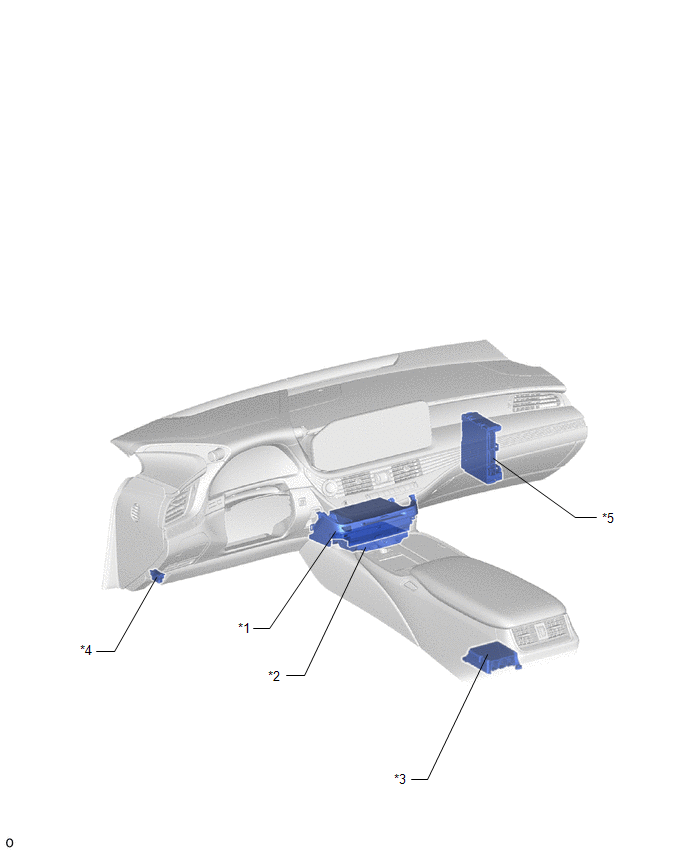

*1	RADIO RECEIVER ASSEMBLY	*2	NAVIGATION ECU
*3	AIRBAG ECU ASSEMBLY	*4	DLC3
*5	PASSENGER SIDE JUNCTION BLOCK - DCM FUSE - IG2 P NO. 3 FUSE	-	-
