DTC B15C4: Airbag Signal Malfunction/Not Input [10/2017 - 10/2020]: Procedure

1. Turn the power switch off.
2. Connect the Techstream to the DLC3.
3. Turn the power switch on (IG) and wait for 10 seconds.
4. Turn the Techstream on.
5. Check the DTC of "AIRBAG SYSTEM".

   Refer to DTC CHECK / CLEAR [10/2017 - 10/2020]

   Result

   Result	Proceed to
   DTCs are not output	A
   DTCs are output	B

Result:

B

GO TO AIRBAG SYSTEM. Refer to  DIAGNOSTIC TROUBLE CODE CHART [10/2017 - 09/2018]  , or refer to  DIAGNOSTIC TROUBLE CODE CHART [09/2018 - 10/2020]

Result:

A

See step  2

1. Remove the DCM (Telematics Transceiver) but do not disconnect the connectors.

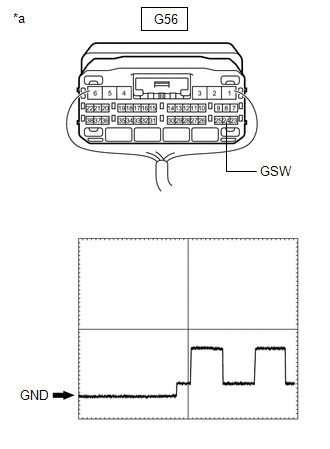

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Component with harness connected (DCM [Telematics Transceiver])

   Refer to REMOVAL [10/2017 - 09/2018] , or refer to REMOVAL [09/2018 - 10/2020]

2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   G56-24 (GSW) - Body ground	Power switch on (IG)	Pulse generation

   Reference Waveform

   Item	Condition
   Tester Connection	G56-24 (GSW) - Body ground
   Tool Setting	5.0 V/DIV., 20 ms./DIV.
   Vehicle Condition	Power switch on (IG)

   Result

   Result	Proceed to
   8.5 V or higher	A
   Below 6.5 V	B
   Pulse generation	C

Result:

B

See step  4

Result:

C

See step  6

Result:

A

See step  3

1. Disconnect the G56 DCM (Telematics Transceiver) connector.
2. Disconnect the G11 airbag ECU assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   G56-24 (GSW) - G11-23 (GSW3)	Always	Below 1 Ω
   G56-24 (GSW) - Body ground	Always	10 kΩ or higher
   G11-23 (GSW3) - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE AIRBAG ECU ASSEMBLY. Refer to  REMOVAL [10/2017 - 09/2018]  , or refer to  REMOVAL [09/2018 - 10/2020]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

1. Disconnect the G56 DCM (Telematics Transceiver) connector.
2. Disconnect the G11 airbag ECU assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   G56-24 (GSW) - Body ground	Always	10 kΩ or higher
   G11-23 (GSW3) - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  5

1. Remove the airbag ECU assembly disconnect the connectors.

   Refer to REMOVAL [10/2017 - 09/2018] , or refer to REMOVAL [09/2018 - 10/2020]

2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   G56-24 (GSW) - Body ground	Power switch on (IG)	8.5 V or higher

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Component with harness connected (DCM [Telematics Transceiver])

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE AIRBAG ECU ASSEMBLY. Refer to  REMOVAL [10/2017 - 09/2018]  , or refer to  REMOVAL [09/2018 - 10/2020]

Result:

NG

See step  6

1. Replace the DCM (Telematics Transceiver).

   Refer to REMOVAL [10/2017 - 09/2018] , or refer to REMOVAL [09/2018 - 10/2020]

   NOTE:

   • The power switch must be off.
   • Do not exchange the DCM (Telematics Transceiver) with one from another vehicle.

   Result

   Proceed to
   NEXT

Result:

NEXT

PERFORM DCM ACTIVATION. Refer to  DCM ACTIVATION [10/2017 - 10/2020]
