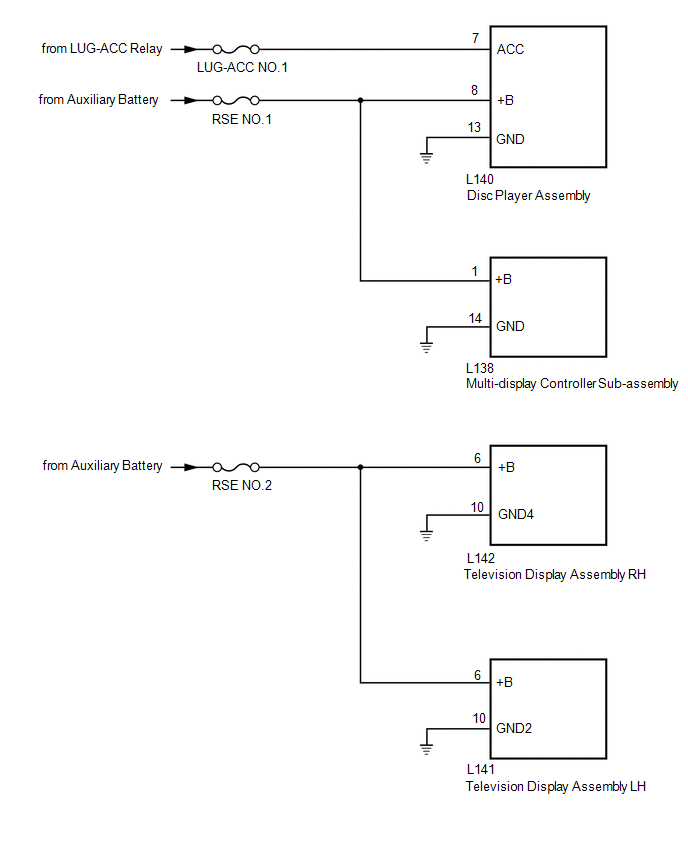

Power Source Circuit [10/2022 - ]: Wiring Diagram

GTY1122755

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
