Rear Seat Entertainment System
>>
DTC B154A-87: Seatback Display RH Missing Message; DTC B154B-87: Seatback Display LH Missing Message [10/2022 - ]
>>

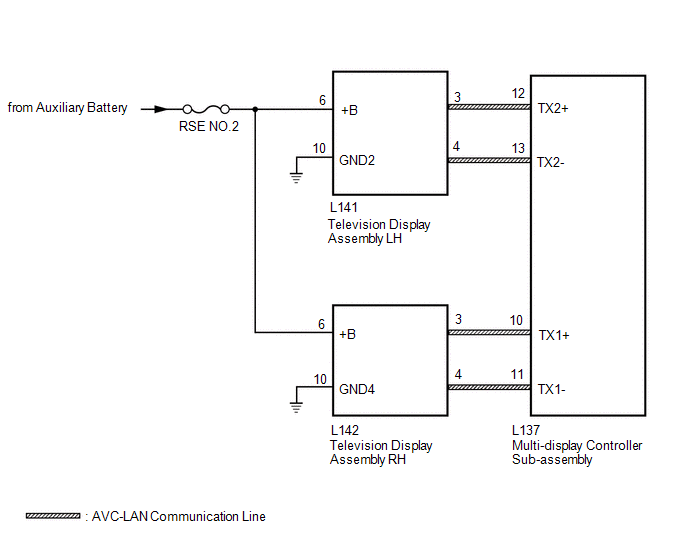

Wiring Diagram
DTC B154A-87: Seatback Display RH Missing Message; DTC B154B-87: Seatback Display LH Missing Message [10/2022 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
